PAT-12 Datasheet, Attenuators, Mini-Circuits

PAT-12 Features

• Attenuators
• low-cost ceramic package wideband DC-7 GHz frequency coverage excellent VSWR throughout entire band miniature size FLATNESS, dB
• 2 1 MAX

PDF File Details

Part number:

PAT-12

Manufacturer:

Mini-Circuits

File Size:

126.15kb

Download:

📄 Datasheet

Description:

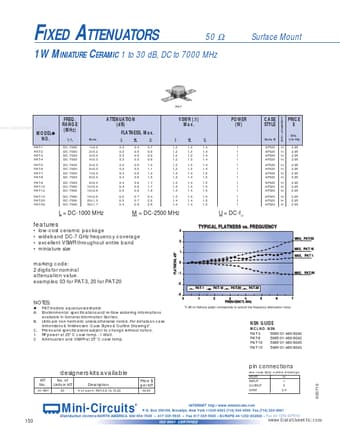

Fixed attenuators. Price $ per KIT see case style outline drawings PORT hl INPUT 1 OUTPUT 3 GND 2,4 Mini-Circuits Coaxial, 50 Ω, N-type ® ½W 1 to 2

PAT-12 Application

• Applications l l impedance matching signal level adjustment NOTES:
• 0.5 watt at 70°C ambient derate linearly 0.015W/°C above 70°C.
<
