PAT-15 (PAT-xx) Fixed Attenuators

Price $ per KIT see case style outline drawings PORT hl INPUT 1 OUTPUT 3 GND 2,4 Mini-Circuits Coaxial, 50 Ω, N-type ® ½W 1 to 20 dB, DC to 6000 MHz NEW! UNAT www.DataSheet4U.com MODEL NO. UNAT-1 UNAT-2 UNAT-3 UNAT-4 UNAT-5 UNAT-6 UNAT-7 UNAT-8 UNAT-9 UNAT-10 UNAT-12 UNAT-15 UNAT-20 FREQ. RA.

FIXED ATTENUATORS 50 Ω Surface Mount 1W MINIATURE CERAMIC 1 to 30 dB, DC to 7000 MHz PAT www.DataSheet4U.com MODELu NO. PAT-1 PAT-2 PAT-3 PAT-4 PAT-5 PAT-6 PAT-7 PAT-8 PAT-9 PAT-10 PAT-12 PAT-15 PAT-20 PAT-30 FREQ. RANGE (MHz) fL-fU DC-7000 DC-7000 DC-7000 DC-7000 DC-7000 DC-7000 DC-7000 DC-7000 DC-7000 DC-7000 DC-7000 DC-7000 DC-7000 DC-7000 Nom. 1±0.2 2±0.2 3±0.3 4±0.3 5±0.3 6±0.3 7±0.3 8±0.4 9±0.4 10±0.4 12±0.6 15±0.6 20±1.3 30±1.7 ATTENUATION (dB) FLATNESS, Max. L 0.3 0.3 0.3 0.3 0.3 .

PAT-15 Features

* low-cost ceramic package wideband DC-7 GHz frequency coverage excellent VSWR throughout entire band miniature size FLATNESS, dB

* 2 1 MAX, PAT-1 0 marking code: 2 digits for nominal attenuation value. examples: 03 for PAT-3, 20 for PAT-20 -1 MAX, PAT-30

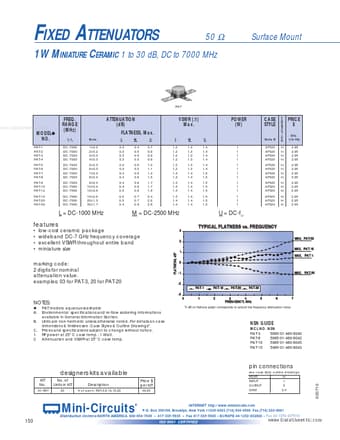

PAT-15 Datasheet (126.15 KB)

PAT-15 Datasheet Preview — Preview of PAT-15 PDF

Datasheet Details

Part number:

PAT-15

Manufacturer:

Mini-Circuits

File Size:

126.15 KB

Description:

(pat-xx) fixed attenuators.
