PAT-20, PAT-6_Mini, Fixed Attenuators

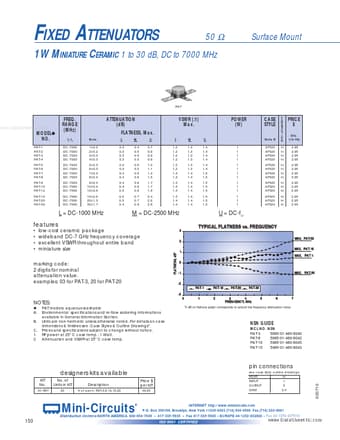

FIXED ATTENUATORS 50 Ω Surface Mount 1W MINIATURE CERAMIC 1 to 30 dB, DC to 7000 MHz PAT www.DataSheet4U.com MODELu NO.PAT-1 PAT-2 PAT-3 PAT-4 P.
Price $ per KIT see case style outline drawings PORT hl INPUT 1 OUTPUT 3 GND 2,4 Mini-Circuits Coaxial, 50 Ω, N-type ® ½W 1 to 20 dB, DC to 6000.

datasheet Preview Page 1 from Datasheet4u.com

PAT-6_Mini-Circuits.pdf

PAT-20 Datasheet Preview — This datasheet PDF includes multiple part numbers: PAT-20, PAT-6_Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PAT-20, PAT-6_Mini

Manufacturer:

Mini-Circuits

File Size:

126.15 KB

Description:

Fixed Attenuators

Note:

This datasheet PDF includes multiple part numbers: PAT-20, PAT-6_Mini.
Please refer to the document for exact specifications by model.

Features

* low-cost ceramic package wideband DC-7 GHz frequency coverage excellent VSWR throughout entire band miniature size FLATNESS, dB
* 2 1 MAX, PAT-1 0 marking code: 2 digits for nominal attenuation value. examples: 03 for PAT-3, 20 for PAT-20 -1 MAX, PAT-30

Applications

* l l impedance matching signal level adjustment NOTES:
* 0.5 watt at 70°C ambient derate linearly 0.015W/°C above 70°C.
* Attenuation varies by 0.3 dB max. over temperature.
* Flatness= variation overband divided by 2 A. General Quality Control Procedures, Environmental S
