Part number:
EA20QS04
Manufacturer:
Nihon Inter Electronics
File Size:
45.69 KB
Description:
Sbd
EA20QS04
Nihon Inter Electronics
45.69 KB
Sbd
* TO-251AA Case
* Low Forward Voltage drop
* Low Power Loss
* High Surge Capability

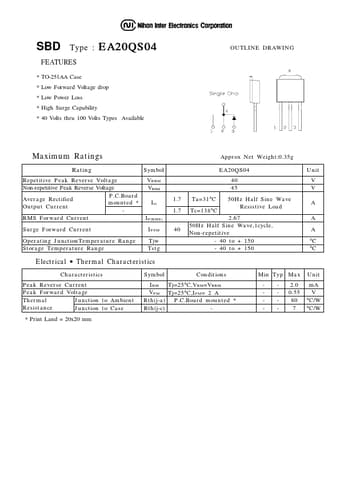

* 40 Volts thru 100 Volts Types Available OUTLINE DRAWING Maximum Ratings Approx Net Weight:0.35g Rating Symbol EA20QS04 Repetitive Peak Reverse Voltage Non-repetitive Peak Reverse Voltage
