EA20QC06-F Datasheet - Nihon Inter Electronics

EA20QC06-F SBD

2A Avg. 60 Volts SBD EA20QC06-F INSTANTANEOUS FORWARD CURRENT (A) AVERAGE REVERSE POWER DISSIPATION (W) 5 2 1 0.5 0.2 0.1 0 FORWARD CURRENT VS. VOLTAGE EA20QC06/EA20QC06-F (per Arm) Tj=25°C Tj=150°C 0.2 0.4 0.6 0.8 1.0 1.2 INSTANTANEOUS FORWARD VOLTAGE (V) 1.4 AVERAGE FORWARD POWER DISSIPATION (W) 0° 180° θ CONDUCTION ANGLE 1.6 1.4 1.2 1.0 0.8 0.6 0.4 0.2 0 0 AVERAGE FORWARD POWER DISSIPATION EA20QC06/EA20QC06-F (Total) RECT 180° SINE WAVE 0.4 0.8 1.2 1.6 2.0 AVERAGE FORWARD CURRENT .

EA20QC06-F Datasheet (136.81 KB)

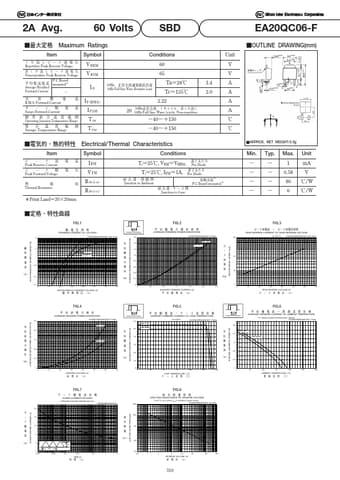

EA20QC06-F Datasheet Preview — Preview of EA20QC06-F PDF

Datasheet Details

Part number:

EA20QC06-F

Manufacturer:

Nihon Inter Electronics

File Size:

136.81 KB

Description:

Sbd.
