EA20QS10 Datasheet - Nihon Inter Electronics

EA20QS10 SBD

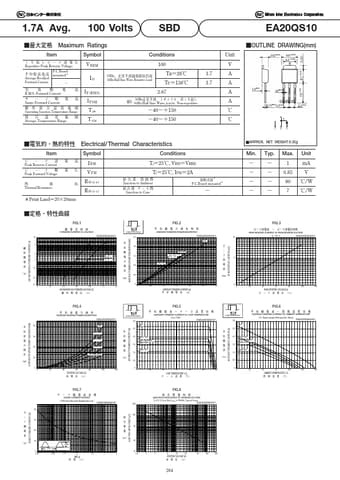

1.7A Avg. 100 Volts SBD EA20QS10 INSTANTANEOUS FORWARD CURRENT (A) AVERAGE REVERSE POWER DISSIPATION (W) 10 5 2 1 0.5 0.2 0.1 0 AVERAGE FORWARD POWER DISSIPATION (W) FORWARD CURRENT VS. VOLTAGE EA20QS10/EA20QS10-F Tj=25°C Tj=150°C 0° 180° θ CONDUCTION ANGLE 2.0 1.6 1.2 0.8 AVERAGE FORWARD POWER DISSIPATION EA20QS10/EA20QS10-F D.C. RECT 180° HALF SINE WAVE RECT 120° RECT 60° 0.4 0.2 0.4 0.6 0.8 1.0 INSTANTANEOUS FORWARD VOLTAGE (V) 1.2 0 0 0.5 1.0 1.5 2.0 2.5 3.0 AVERAGE FORWARD CUR.

EA20QS10-NihonInterElectronics.pdf

EA20QS10 Datasheet Preview — Preview of EA20QS10 PDF

Datasheet Details

Part number:

EA20QS10

Manufacturer:

Nihon Inter Electronics

File Size:

110.51 KB

Description:

Sbd.
