| Part number | NR1600DD, NR1600GK |
|---|---|
| Manufacturer | Nisshinbo |
| File Size | 3.32 MB |
| Description | 500mA Low Dropout Voltage Regulator |
| Datasheet |

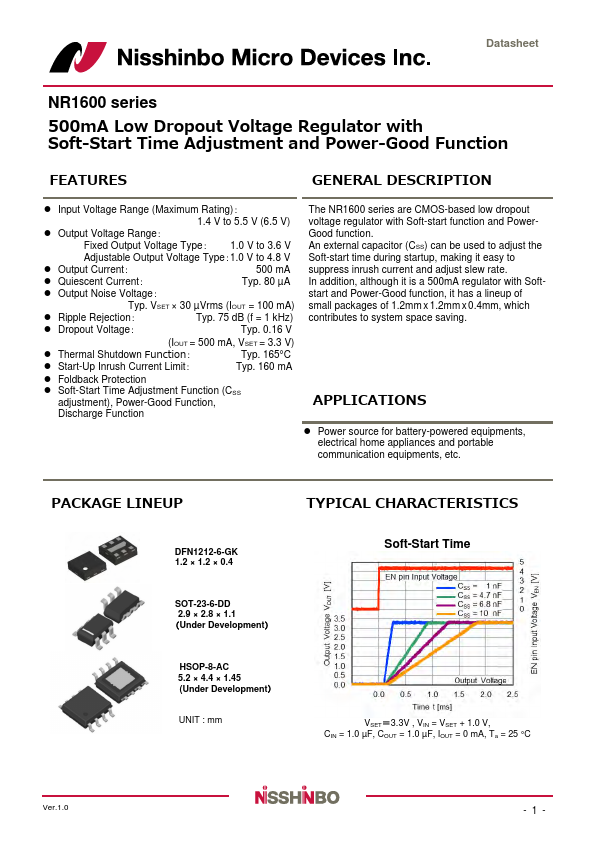

 NR1600GK-Nisshinbo.pdf
|
| Note |
This datasheet PDF includes multiple part numbers: NR1600DD, NR1600GK. Please refer to the document for exact specifications by model. |
Input Voltage Range (Maximum Rating)： 1.4 V to 5.5 V (6.5 V) Output Voltage Range： Fixed Output Voltage Type： 1.0 V to 3.6 V Adjustable Output Voltage Type：1.0 V to 4.8 V Output Current： 500 mA Quiescent Current： Typ.80 µA Output Noise Voltage： Typ.VSET × 30 µVrms (IOUT = 100 mA) Ripple Rejection： Typ.75 dB (f = 1 kHz) Dropout Voltage： Typ.0.16 V (IOUT = 500 mA, VSET = 3.3 V) Thermal Shutdown Function： Typ.165°C Start-
