NR1600GK - 500mA Low Dropout Voltage Regulator

📥 Download Datasheet

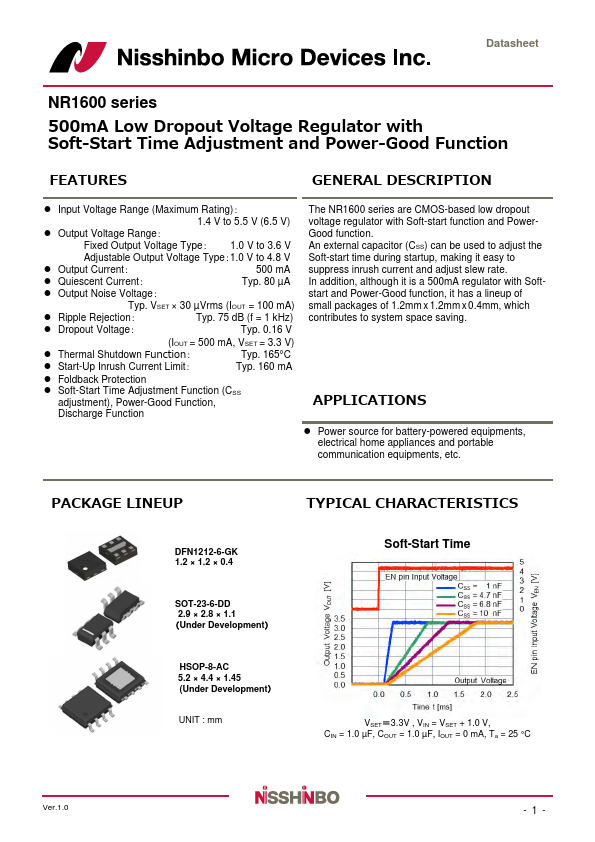

Preview of NR1600GK PDF

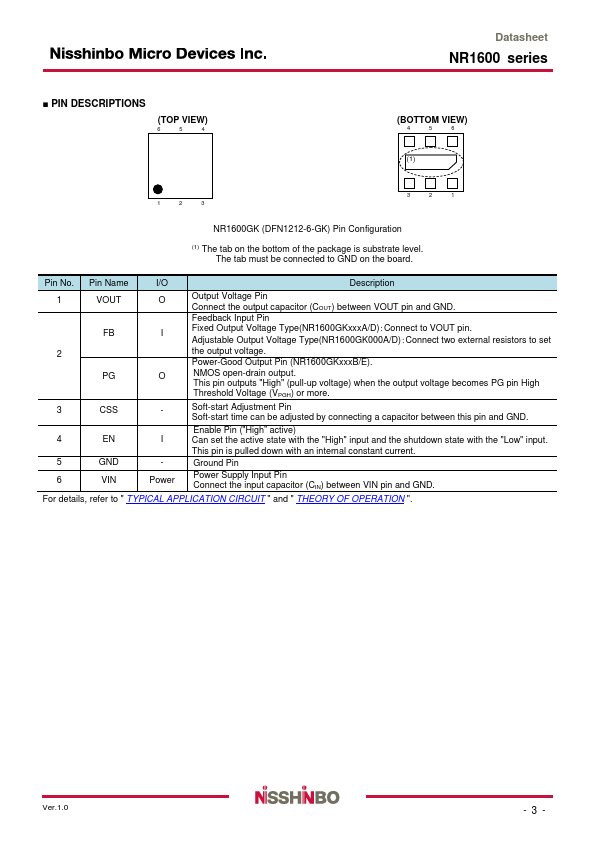

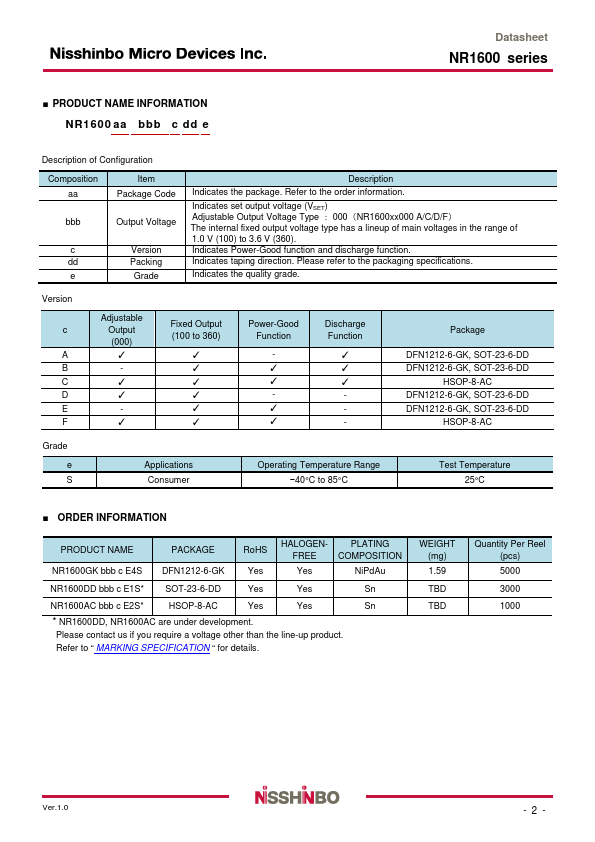

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number NR1600GK
Manufacturer Nisshinbo
File Size 3.32 MB
Description 500mA Low Dropout Voltage Regulator
Datasheet download datasheet NR1600GK-Nisshinbo.pdf

NR1600GK Product details

Description

Input Voltage Range (Maximum Rating)： 1.4 V to 5.5 V (6.5 V) Output Voltage Range： Fixed Output Voltage Type： 1.0 V to 3.6 V Adjustable Output Voltage Type：1.0 V to 4.8 V Output Current： 500 mA Quiescent Current： Typ.80 µA Output Noise Voltage： Typ.VSET × 30 µVrms (IOUT = 100 mA) Ripple Rejection： Typ.75 dB (f = 1 kHz) Dropout Voltage： Typ.0.16 V (IOUT = 500 mA, VSET = 3.3 V) Thermal Shutdown Function： Typ.165°C Start-
