R1518S 1A 36V Input Low Supply Current LDO

Nisshinbo

Description

R1518x Series AEC-Q100 Compliant 1 A 36V Input Low Supply Current LDO for Automotive Applications NO.EC-329-230124 OUTLINE R1518x is a CMOS-based LDO .

📥 Download Datasheet

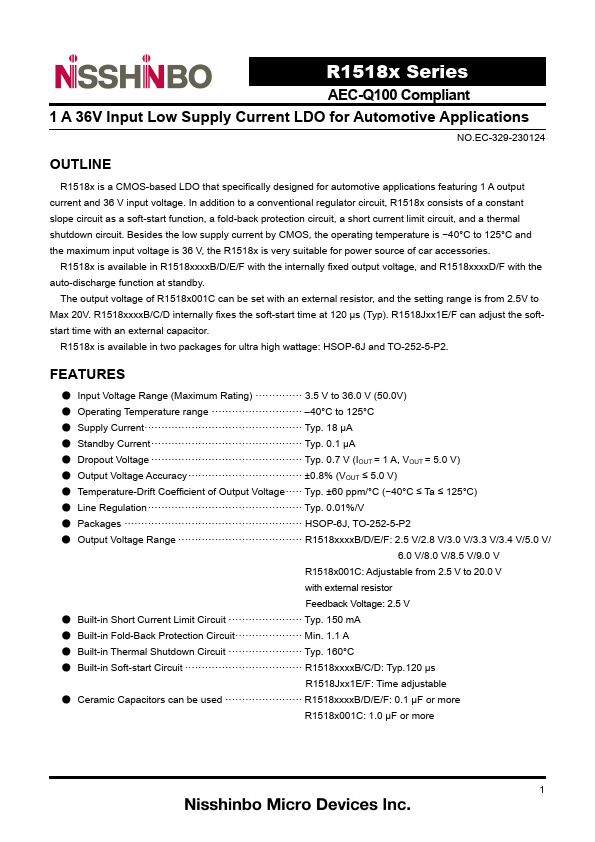

R1518S Datasheet Preview — Preview of R1518S PDF

Datasheet Specifications

Part number: R1518S
Manufacturer: Nisshinbo
File Size: 2.41 MB
Datasheet: R1518S-Nisshinbo.pdf
Description: 1A 36V Input Low Supply Current LDO

Features

* Input Voltage Range (Maximum Rating) ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 3.5 V to 36.0 V (50.0V)
* Operating Temperature range ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 40°C to 125°C
* Supply Currentꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ Typ. 18 µA
* Standby Current ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ

Applications

* NO. EC-329-230124 OUTLINE R1518x is a CMOS-based LDO that specifically designed for automotive applications featuring 1 A output current and 36 V input voltage. In addition to a conventional regulator circuit, R1518x consists of a constant slope circuit as a soft-start function, a fold-back protectio
