RP105K - Low Voltage 400mA LDO Regulator

Nisshinbo

📥 Download Datasheet

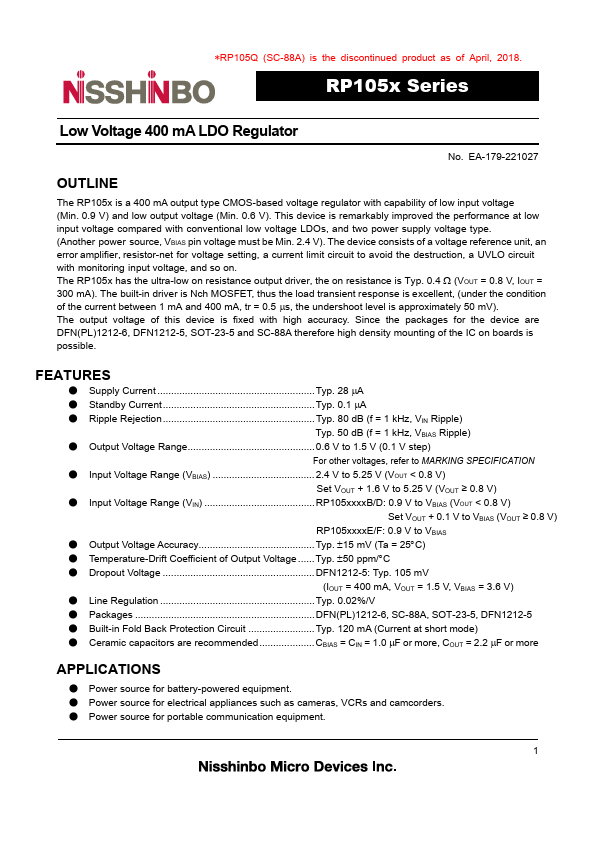

RP105K Datasheet Preview — Preview of RP105K PDF

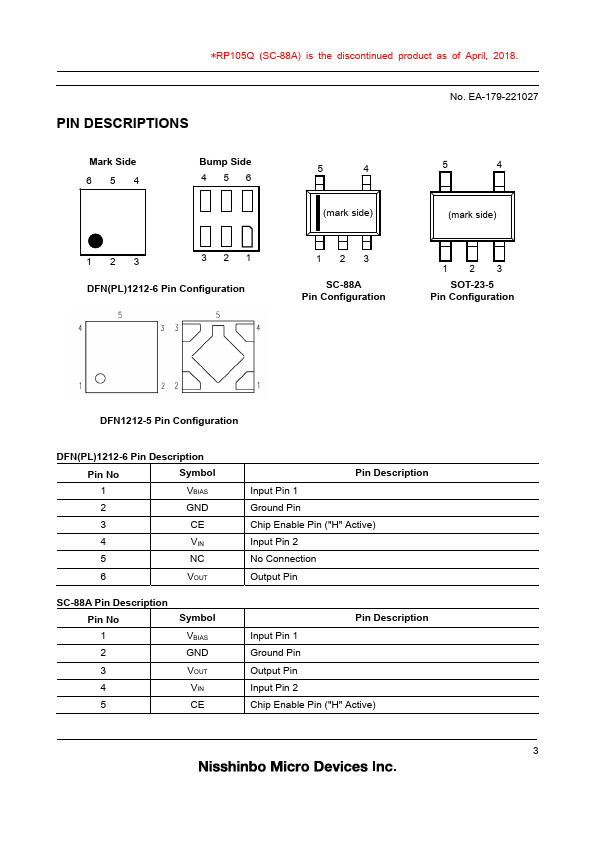

datasheet Preview Page 2

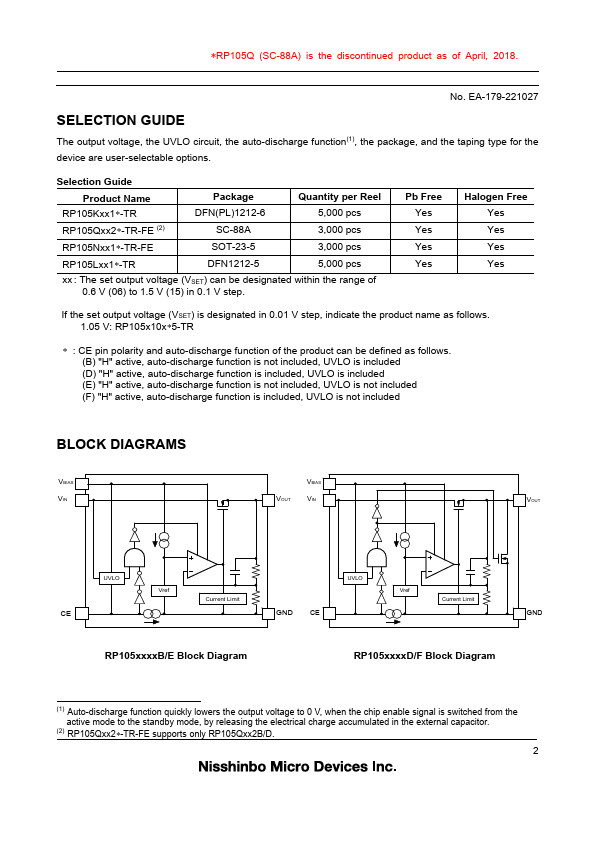

datasheet Preview Page 3

Datasheet Details

Part number	RP105K
Manufacturer	Nisshinbo
File Size	1.80 MB
Description	Low Voltage 400mA LDO Regulator
Datasheet	RP105K-Nisshinbo.pdf

RP105K Product details

Features

Supply Current Typ. 28 A.
Standby Current Typ. 0.1 A.
Ripple Rejection Typ. 80 dB (f = 1 kHz, VIN Ripple) ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ . Typ. 50 dB (f = 1 kHz, VBIAS Ripple).
Output Voltage Range 0.6 V to 1.5 V (0.1 V step) For other voltages, refer to.
