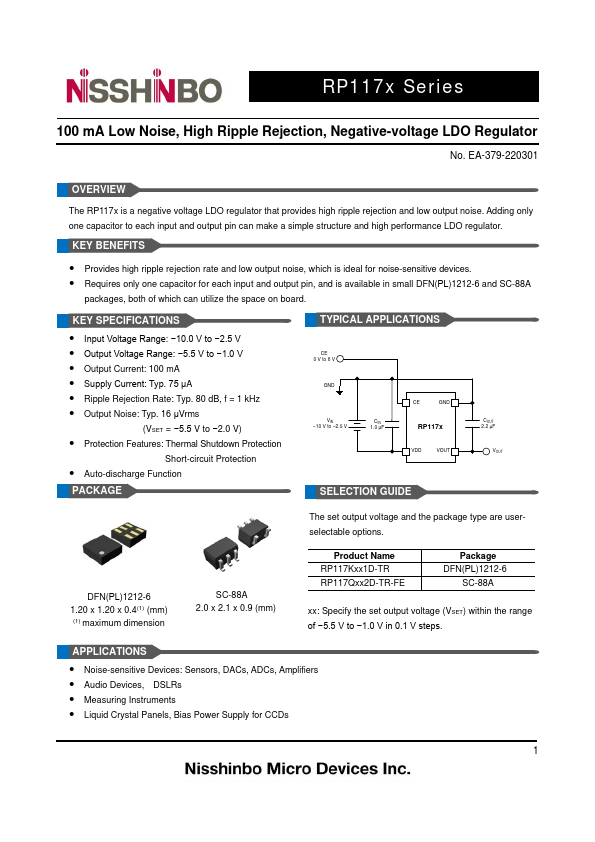

RP117K - Negative-voltage LDO Regulator

Nisshinbo

RP117K Datasheet Preview — Preview of RP117K PDF

Datasheet Details

Part number	RP117K
Manufacturer	Nisshinbo
File Size	1.56 MB
Description	Negative-voltage LDO Regulator
Datasheet	RP117K-Nisshinbo.pdf

RP117K Product details

Description

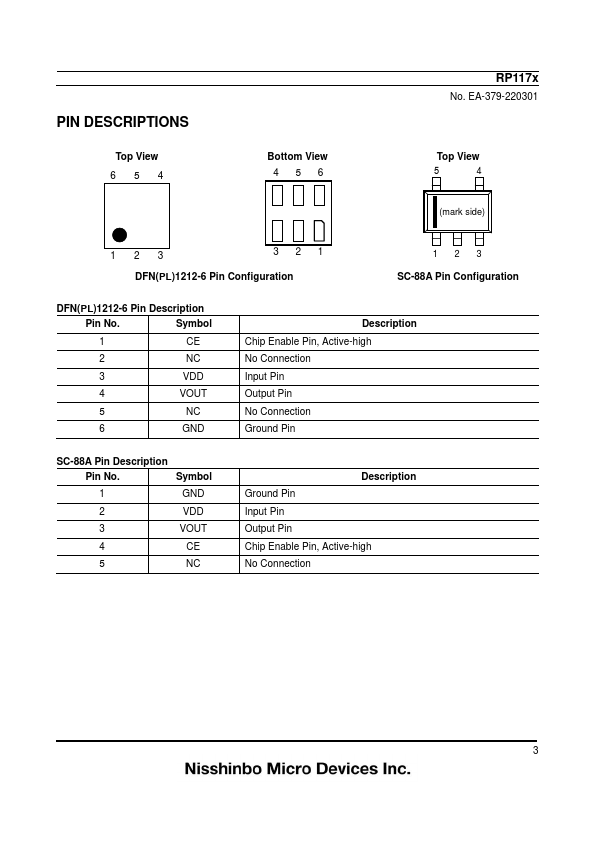

Top View 654 Bottom View 456 RP117x No.EA-379-220301 Top View 5 4 (mark side) 123 321 DFN(PL)1212-6 Pin Configuration 123 SC-88A Pin Configuration DFN(PL)1212-6 Pin Description Pin No.Symbol 1 CE 2 NC 3 VDD 4 VOUT 5 NC 6 GND Description Chip Enable Pin, Active-high No Connection Input Pin Output Pin No Connection Ground Pin SC-88A Pin Description Pin No.Symbol 1 GND 2 VDD 3 VOUT 4 CE 5 NC Description Ground Pin Input Pin Output Pin Chip Enable Pin, Act

Features

Thermal Shutdown Protection Short-circuit Protection.
Auto-discharge Function.
