RP130N, RP130L Low Noise 150mA LDO Regulator

Nisshinbo

Description

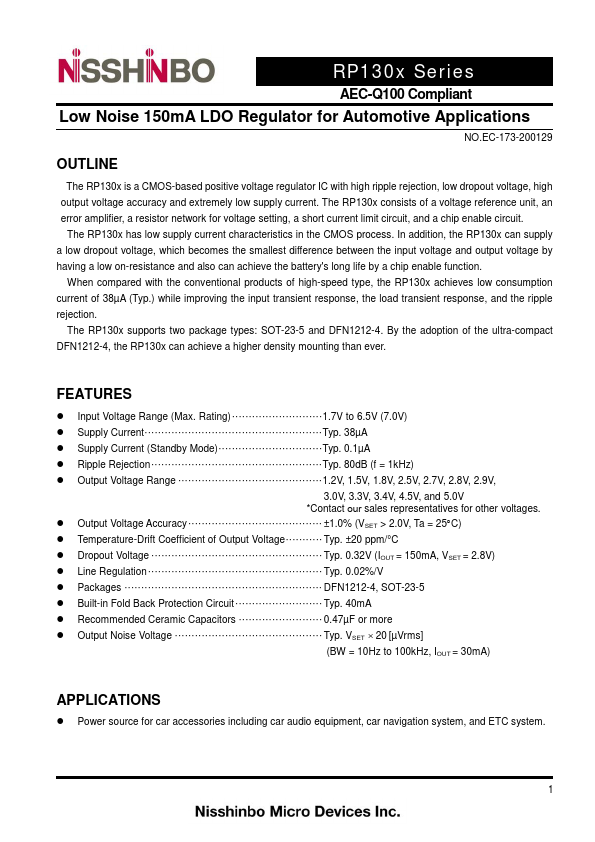

RP130x Series AEC-Q100 Compliant Low Noise 150mA LDO Regulator for Automotive Applications NO.EC-173-200129 OUTLINE The RP130x is a CMOS-based positiv.

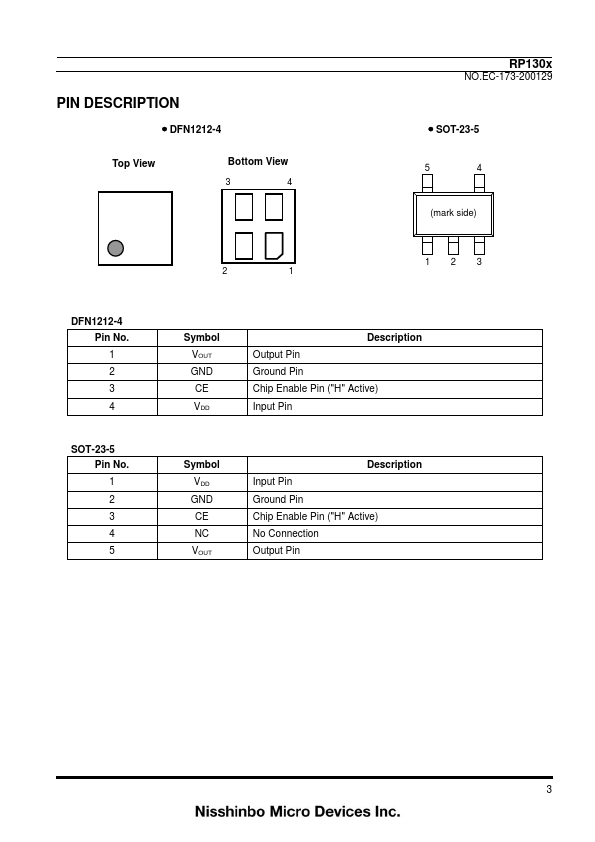

DFN1212-4 Top View Bottom View 3 4 RP130x NO. SOT-23-5 5 4 (mark side) 2 1 123 DFN1212-4 Pin No.

📥 Download Datasheet

RP130N Datasheet Preview — This datasheet PDF includes multiple part numbers: RP130N, RP130L. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: RP130N, RP130L
Manufacturer: Nisshinbo
File Size: 1.99 MB
Datasheet: RP130L-Nisshinbo.pdf
Description: Low Noise 150mA LDO Regulator
Note: This datasheet PDF includes multiple part numbers: RP130N, RP130L.
Please refer to the document for exact specifications by model.

Features

* Input Voltage Range (Max. Rating)
* 1.7V to 6.5V (7.0V)
* Supply Current

Applications

* NO. EC-173-200129 OUTLINE The RP130x is a CMOS-based positive voltage regulator IC with high ripple rejection, low dropout voltage, high output voltage accuracy and extremely low supply current. The RP130x consists of a voltage reference unit, an error amplifier, a resistor network for voltage settin
