RP130N, RP130K Low Noise 150mA LDO Regulator

Nisshinbo

Description

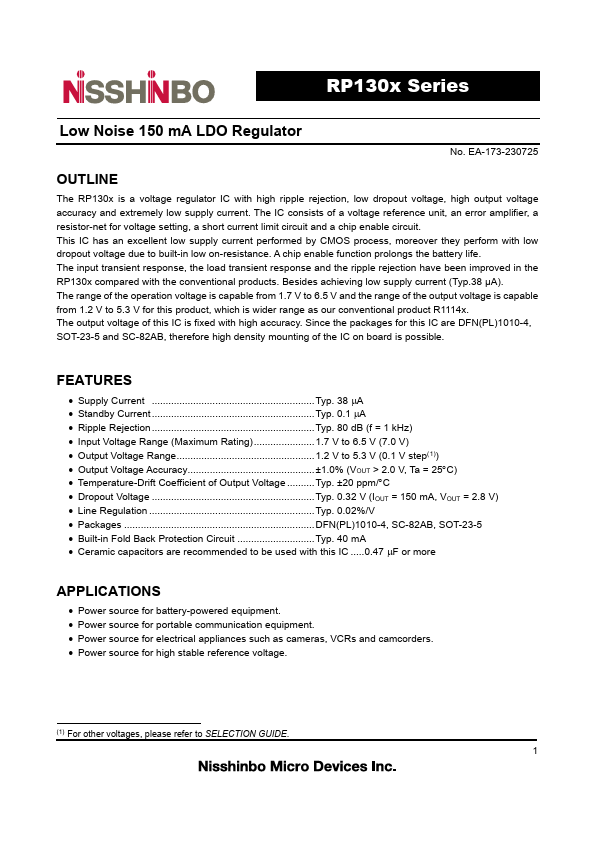

RP130x Series Low Noise 150 mA LDO Regulator No.EA-173-230725 OUTLINE The RP130x is a voltage regulator IC with high ripple rejection, low dropout.
Top View Bottom View 4 3 3 4 (1) 4 3 (mark side) RP130x No.

📥 Download Datasheet

RP130N Datasheet Preview — This datasheet PDF includes multiple part numbers: RP130N, RP130K. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: RP130N, RP130K
Manufacturer: Nisshinbo
File Size: 1.11 MB
Datasheet: RP130K-Nisshinbo.pdf
Description: Low Noise 150mA LDO Regulator
Note: This datasheet PDF includes multiple part numbers: RP130N, RP130K.
Please refer to the document for exact specifications by model.

Features

* Supply Current Typ. 38 µA
* Standby Current Typ. 0.1 µA
* Ripple Rejection Typ. 80 dB (f = 1 kHz)
* Input Voltage Range (Maximum Rating) 1.7 V to 6.5 V (7.0 V)
* Output Voltage Range 1.2 V to 5.3 V (0.1 V step(1))
* Output Voltage Accuracy ±1.0%

Applications

* Power source for battery-powered equipment.
* Power source for portable communication equipment.
* Power source for electrical appliances such as cameras, VCRs and camcorders.
* Power source for high stable reference voltage. (1) For other voltages, please refer to
