NC1M120C75HTU 1200V SiC MOSFET

NC1M120C75HTU Description

NC1M120C75HTU NovuSiC®️ 1200V 75mΩ SiC MOSFET Datasheet VDS ID@25°C RDS(on) = 1200V = 46A = 75mΩ .

NC1M120C75HTU Features

* High blocking voltage with low On-resistance
* High speed switching with low capacitances

NC1M120C75HTU Applications

* Marking
* PV Inverters
* Charging Piles
* Energy storage systems
* Industrial power supply
* Industrial Motors C1M120C75U C1M120C75U = Specific device YY = Year YYWW WW = Work week XXX = Wafer code XXXA A = Assembly location Maximum Ratings @Tc=2

📥 Download Datasheet

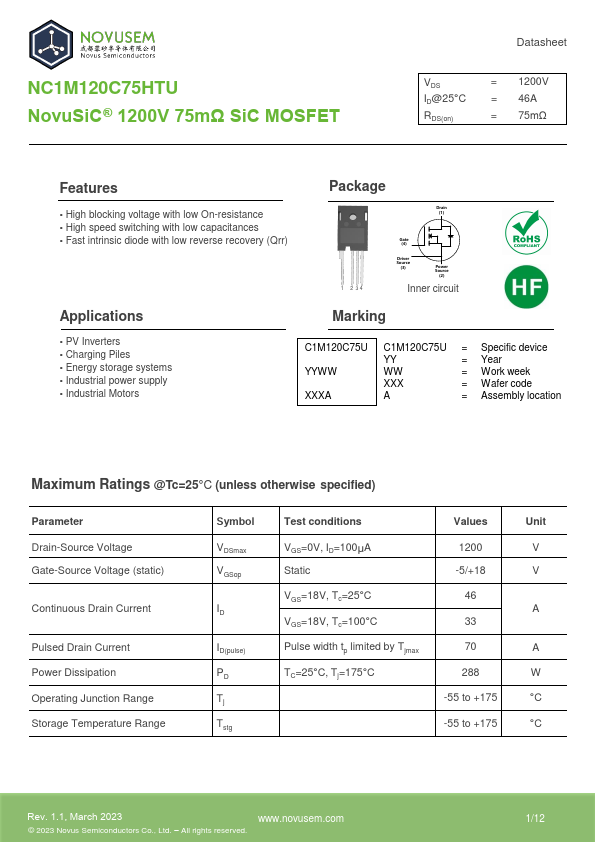

NC1M120C75HTU Datasheet Preview — Preview of NC1M120C75HTU PDF

Datasheet Details

Part number: NC1M120C75HTU
Manufacturer: Novus Semiconductors
File Size: 1.62 MB
Datasheet: NC1M120C75HTU-NovusSemiconductors.pdf
Description: 1200V SiC MOSFET
