JS28F640P30BF75 - 64-Mbit Single Bit per Cell P30-65nm Flash Memory

Product Overview

Numonyx

📥 Download Datasheet

JS28F640P30BF75 64-Mbit Single Bit per Cell P30-65nm Flash Memory by Numonyx - Datasheet Preview — Datasheet preview – JS28F640P30BF75

Datasheet Details

Part number	JS28F640P30BF75
Manufacturer	Numonyx
File Size	1.07 MB
Description	64-Mbit Single Bit per Cell P30-65nm Flash Memory
Datasheet	JS28F640P30BF75 Datasheet

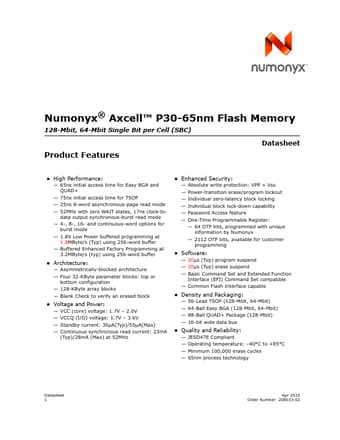

Additional preview pages of the JS28F640P30BF75 datasheet.

Product details

Features

High Performance:.
65ns initial access time for Easy BGA and QUAD+.
75ns initial access time for TSOP.
25ns 8-word asynchronous-page read mode.
52MHz with zero WAIT states, 17ns clock-todata output synchronous-burst read mode.
4-, 8-, 16- and continuous-word options for burst mode.
1.8V Low Power buffered programming at 1.8MByte/s (Typ) using 256-word buffer.
Buffered Enhanced Factory Programming at 3.2MByte/s (typ) using.
