NAND256W4A, NAND128-A SLC NAND flash memories

NAND256W4A Description

NAND128-A NAND256-A 128-Mbit or 256-Mbit, 528-byte/264-word page, 3 V, SLC NAND flash memories .

NAND256W4A Features

* High density NAND flash memories
* Up to 256-Mbit memory array
* Up to 32-Mbit spare area

NAND256W4A Applications

* NAND interface
* x8 or x16 bus width
* Multiplexed address/ data
* Pinout compatibility for all densities
* Supply voltage
* VDD = 2.7 to3.6 V
* Page size
* x8 device: (512 + 16 spare) bytes
* x16 device: (256 + 8 spare) word

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: NAND256W4A, NAND128-A. Please refer to the document for exact specifications by model.

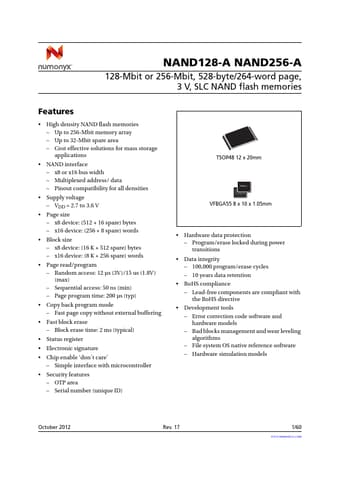

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NAND256W4A, NAND128-A
Manufacturer
Numonyx
File Size
857.08 KB
Datasheet
NAND128-A-Numonyx.pdf
Description
SLC NAND flash memories
Note
This datasheet PDF includes multiple part numbers: NAND256W4A, NAND128-A.
Please refer to the document for exact specifications by model.
