OSD32MP157F - Microprocessor

17 5.2 Reserved Balls 22 5.3 Test Point Signals 22 6 OSD32MP15x Components 23 6.1 STM32MP15x Processor 24 6.1.1 I/O Voltages 24 6.2 DDR3L Memory 24 6.3 MEMS Oscillators 25 6.3.1 HSE MEMS Oscillator 25 6.4 EEPROM 26 6.4.1 EEPROM Contents 26 6.4.2 EEPROM Write Protection 26 7 Power Management .

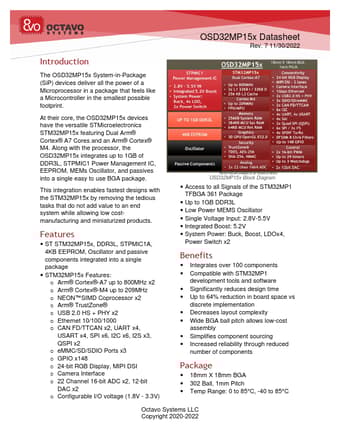

OSD32MP15x Datasheet Rev. 7 11/30/2022 Introduction The OSD32MP15x System-in-Package (SiP) devices deliver all the power of a Microprocessor in a package that feels like a Microcontroller in the smallest possible footprint. At their core, the OSD32MP15x devices have the versatile STMicroelectronics STM32MP15x featuring Dual Arm® Cortex® A7 Cores and an Arm® Cortex® M4. Along with the processor, the OSD32MP15x integrates up to 1GB of DDR3L, STPMIC1 Power Management IC, EEPROM, MEMs Oscillator, .

OSD32MP157F Features

* ST STM32MP15x, DDR3L, STPMIC1A, 4KB EEPROM, Oscillator and passive components integrated into a single package

* STM32MP15x Features: o Arm® Cortex®-A7 up to 800MHz x2 o Arm® Cortex®-M4 up to 209MHz o NEON™SIMD Coprocessor x2 o Arm® TrustZone® o USB 2.0 HS + PHY x2 o Ethernet 10/10
