MSM6946 - (MSM6926 / MSM6946) 300 bps Single Chip FSK MODEM

Name: MSM6946
SKU: MSM6946-534898

OKI Semiconductor

📥 Download Datasheet

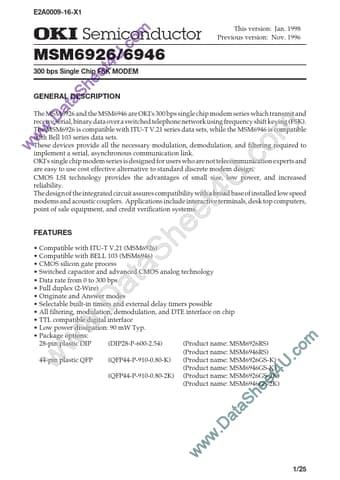

MSM6946 Datasheet Preview — Preview of MSM6946 PDF

Datasheet Details

Part number	MSM6946
Manufacturer	OKI Semiconductor
File Size	191.45 KB
Description	(MSM6926 / MSM6946) 300 bps Single Chip FSK MODEM
Datasheet	MSM6946_OKISemiconductor.pdf

MSM6946 Product details

Description

a t a and the MSM6946 are OKI's 300 bps single chip modem series which transmit and The MSM6926 D receive.serial, binary data over a switched telephone network using frequency shift keying (FSK).

Features

Compatible with ITU-T V.21 (MSM6926).
Compatible with BELL 103 (MSM6946).
CMOS silicon gate process.
Switched capacitor and advanced CMOS analog technology.
Data rate from 0 to 300 bps.
Full duplex (2-Wire).
Originate and Answer modes.
Selectable built-in timers and external delay timers possible.
All filtering, modulation, demodulation, and DTE interface on chip.
TTL compatible digital interface.
