MSM6947

(MSM6927 / MSM6947) 1200 bps Single Chip FSK MODEM

MSM6947 Features

* Compatible with ITU-T V.23 (MSM6927)

* Compatible with BELL 202 (MSM6947)

* CMOS silicon gate process

* Switched capacitor and advanced CMOS analog technology

* Data rate from 0 to 1200 bps

* Half duplex (2-Wire)

* Receive squelch delay

MSM6947 General Description

a t a and the MSM6947 are OKI's 1200 bps single chip modem series which transmit The MSM6927 D and receive . serial, binary data over a switched telephone network using frequency shift keying(FSK). w The MSM6927 is compatible with ITU-T V.23 series data sets, while the MSM6947 is compatible w with B.

MSM6947 Datasheet (226.20 KB)

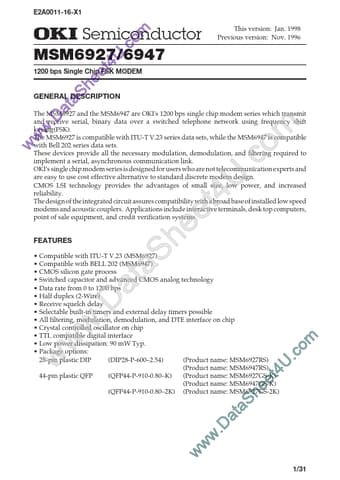

Preview of MSM6947 PDF

Datasheet Details

Part number:

MSM6947

Manufacturer:

OKI Semiconductor

File Size:

226.20 KB

Description:

(msm6927 / msm6947) 1200 bps single chip fsk modem.
E2A0011-16-X1 This version: Jan. 1998 MSM6927/6947 m Previous version: Nov. 1996 ยก Semiconductor o c . MSM6927/6947 U 4MODEM t 1200 bps Single Chip FS.
