MSM64153A - 4-Bit Microcontroller with Built-in RC Oscillation Type A/D Converter and LCD Driver

OKI electronic componets

Datasheet Details

Part number: MSM64153A
Manufacturer: OKI electronic componets
File Size: 146.29 KB
Datasheet: MSM64153A_OKIelectroniccomponets.pdf
Description: 4-Bit Microcontroller with Built-in RC Oscillation Type A/D Converter and LCD Driver

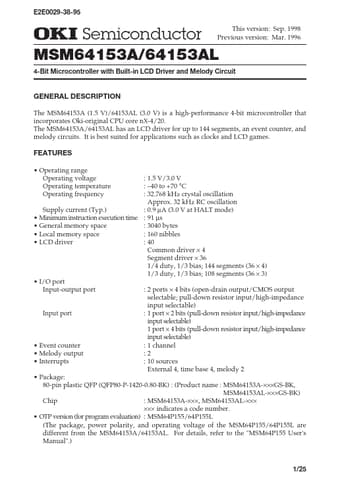

The MSM64153A (1.5 V)/64153AL (3.0 V) is a high-performance 4-bit microcontroller that incorporates Oki-original CPU core nX-4/20.

Operating range Operating voltage Operating temperature Operating frequency : 1.5 V/3.0 V :.
40 to +70 °C : 32.768 kHz crystal oscillation Approx. 32 kHz RC oscillation Supply current (Typ. ) : 0.9 mA (3.0 V at HALT mode).
Minimum instruction execution time : 91 ms.
General memory space : 3040 bytes.
Local memory space : 160 nibbles.
LCD driver : 40 Common driver.
4 Segment driver.
36 1/4 duty, 1/3 bias; 144 segments (36.
4) 1/.
