MSM64152A - 4-Bit Microcontroller with Built-in RC Oscillation Type A/D Converter and LCD Driver

Description

The MSM64152A (1.5 V)/64152AL (3.0 V) is a high-performance 4-bit microcontroller that incorporates Oki-original CPU core nX-4/20.

The MSM64152A/64152AL has an LCD driver for up to 104 segments, an event counter, and a melody circuit.

It is best suited for applications such as clocks and LCD games.

Features

Operating range Operating voltage Operating temperature Operating frequency : 1.5 V/3.0 V :.
40 to +70 °C : 32.768 kHz crystal oscillation Approx. 32 kHz RC oscillation Supply current (Typ. ) : 0.9 mA (3.0 V at HALT mode).
Minimum instruction execution time : 91 ms.
General memory space : 1504 bytes.
Local memory space : 128 nibbles.
LCD driver : 30 Common driver.
4 Segment driver.
26 1/4 duty, 1/3 bias; 104 segments (26.
4) 1/.

OKI electronic componets

📥 Download Datasheet

Datasheet Details

Part number	MSM64152A
Manufacturer	OKI electronic componets
File Size	142.37 KB
Description	4-Bit Microcontroller with Built-in RC Oscillation Type A/D Converter and LCD Driver
Datasheet	MSM64152A Datasheet
Additional preview pages of the MSM64152A datasheet.

📁 Similar Datasheet

MSM6434 - High Speed 4-Bit Single Chip Microcontroller (OKI Semiconductor)
MSM6051 - Built-in Melody Circuit and LCD Driver 4-Bit Microcontroller (OKI electronic)
MSM6052-xx - Tone / Pulse Switchable Repertory Dialer (OKI)
MSM60804 - PCMCIA Host Adapter (OKI electronic)
MSM60808 - PCI to PCMCIA R2.1/CardBus Controller (OKI electronic)
MSM6222B-01 - DOT MATRIX LCD CONTROLLER (OKI)
MSM6222B-xx - DOT MATRIX LCD CONTROLLER (OKI)
MSM6295 - 4-Channel Mixing ADPCM Voice Syntehsis LSI (OKI Semiconductor)
MSM62X42B - REAL TIME CLOCK IC (OKI electronic)
MSM6309 - Solid State Recording LSI for 256K-Bit SRAM (OKI Semiconductor)

Other Datasheets by OKI electronic componets

MSM64153A - 4-Bit Microcontroller with Built-in RC Oscillation Type A/D Converter and LCD Driver
MSM64155A - 4-Bit Microcontroller with Built-in RC Oscillation Type A/D Converter and LCD Driver
MSM64158A - 4-Bit Microcontroller with Built-in RC Oscillation Type A/D Converter and LCD Driver
MSM6411A - 4-Bit Microcontroller with Built-in RC Oscillation Type A/D Converter and LCD Driver
MSM64162 - 4-Bit Microcontroller with Built-in RC Oscillation Type A/D Converter and LCD Driver
MSM64162A - 4-Bit Microcontroller with Built-in RC Oscillation Type A/D Converter and LCD Driver
MSM64162D - 4-Bit Microcontroller with Built-in RC Oscillation Type A/D Converter and LCD Driver
MSM64164C - 4-Bit Microcontroller with Built-in RC Oscillation Type A/D Converter and LCD Driver

Full PDF Text Transcription

Click to expand full text

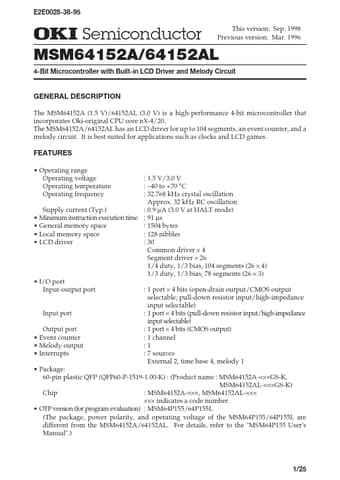

E2E0028-38-95 ¡ Semiconductor MSM64152A/64152AL ¡ Semiconductor This version: Sep. 1998 MSM64152A/64152AL Previous version: Mar. 1996 4-Bit Microcontroller with Built-in LCD Driver and Melody Circuit GENERAL DESCRIPTION The MSM64152A (1.5 V)/64152AL (3.0 V) is a high-performance 4-bit microcontroller that incorporates Oki-original CPU core nX-4/20. The MSM64152A/64152AL has an LCD driver for up to 104 segments, an event counter, and a melody circuit. It is best suited for applications such as clocks and LCD games. FEATURES • Operating range Operating voltage Operating temperature Operating frequency : 1.5 V/3.0 V : –40 to +70 °C : 32.768 kHz crystal oscillation Approx. 32 kHz RC oscillation Supply current (Typ.) : 0.9 mA (3.
