MSM66207 (MSM66201 / MSM66207) OLMS-66K Series 16-Bit Microcontroller

The MSM66201/66207 is a high performance microcontroller that employs OKI original nX-8/ 200 CPU core. This chip includes a 16-bit CPU, ROM, RAM, I/O ports, multifunction 16-bit timers, 10-bit A/D converter, serial I/O port, and pulse width modulator (PWM). The MSM66P201/66P207 is the OTP (One-Time .

MSM66207 Features

* 64K address space for program memory

* 64K address space for data memory

* High-speed execution Minimum cycle for instruction

* Powerful instruction set : Internal ROM : MSM66201 MSM66207 : Internal RAM : MSM66201 MSM66207 16K bytes 32K bytes 512 bytes 1024 bytes

MSM66201_OKIelectroniccomponets.pdf

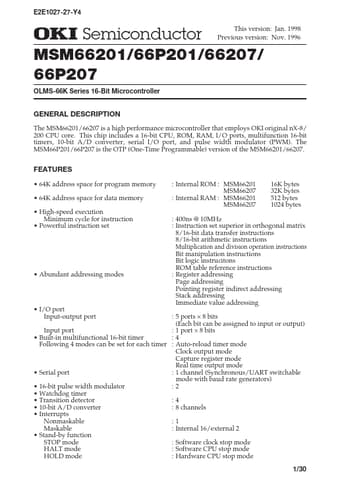

MSM66207 Datasheet Preview — This datasheet PDF includes multiple part numbers: MSM66207, MSM66201. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MSM66207, MSM66201

Manufacturer:

OKI electronic componets

File Size:

579.23 KB

Description:

(msm66201 / msm66207) olms-66k series 16-bit microcontroller.

Note:

This datasheet PDF includes multiple part numbers: MSM66207, MSM66201.
Please refer to the document for exact specifications by model.
