MSM6636

SAE-J1850 Communication Protocol Conformity Transmission Controller for Automotive LAN

MSM6636 Features

* Based on SAE-J1850 CLASS B DATA COMMUNICATION NETWORK INTERFACE (issued August 12, 1991)

* CSMA/CD (Carrier-sense multiple access with collision detection)

* Internal transmit buffer (1 frame) and receive buffer (2 frames)

* Bit encoding: PWM (Pulse Width Modulation

MSM6636 General Description

The MSM6636 is a transmission controller for automotive LAN based on data communication protocol SAE-J1850. This LSI can realize a data bus topology bus LAN system with a PWM bit encoding method (41.6 K bps). In addition to a protocol control circuit, MSM6636 has an enclosed quartz oscillation circu.

MSM6636 Datasheet (109.51 KB)

Preview of MSM6636 PDF

Datasheet Details

Part number:

MSM6636

Manufacturer:

OKI electronic componets

File Size:

109.51 KB

Description:

Sae-j1850 communication protocol conformity transmission controller for automotive lan.

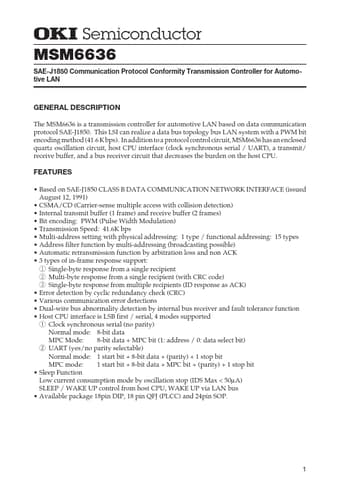

¡ Semiconductor MSM6636 ¡ Semiconductor MSM6636 SAE-J1850 Communication Protocol Conformity Transmission Controller for Automotive LAN GENERAL DESC.
