MSM6684B, MSM6684P 8388608-Word x 1-Bit Serial Register

MSM6684B Description

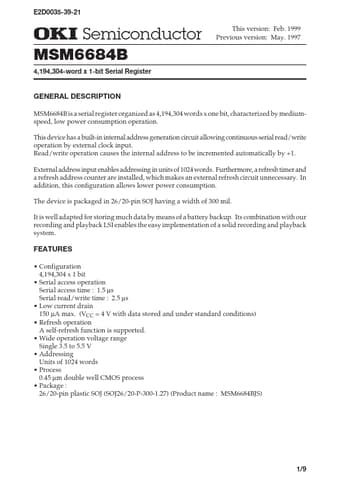

E2D0035-39-21 ¡ Semiconductor ¡ Semiconductor MSM6684B 4,194,304-word x 1-bit Serial Register This version: MSM6684B Feb.1999 Previous version: May.
MSM6684B is a serial register organized as 4,194,304 words x one bit, characterized by mediumspeed, low power consumption operation.

MSM6684B Features

* Configuration 4,194,304 x 1 bit
* Serial access operation Serial access time : 1.5 ms Serial read/write time : 2.5 ms
* Low current drain 150 mA max. (VCC = 4 V with data stored and under standard conditions)
* Refresh operation A self-refresh function is supported.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MSM6684B, MSM6684P. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MSM6684B, MSM6684P
Manufacturer
OKI electronic componets
File Size
117.60 KB
Datasheet
MSM6684P_OKIelectroniccomponets.pdf
Description
8388608-Word x 1-Bit Serial Register
Note
This datasheet PDF includes multiple part numbers: MSM6684B, MSM6684P.
Please refer to the document for exact specifications by model.
