MSM6685 8388608-Word x 1-Bit Serial Register

The MSM6685 is a serial register composed of 8,388,608 words x one bit, characterized by mediumspeed, low power consumption operation. This device has a built-in internal address generation circuit allowing continuous serial read/write operation by external clock input. Read/write operation causes t.

MSM6685 Features

* Configuration

* Serial access operation Serial access time Serial read/write time

* Low current drain : 8,388,608

* 1 bit : 1.5 ms : 2.5 ms : 200 mA max. (VCC = 4 V, at refresh operation, with data stored and under standard conditions)

* Refresh operation A sel

MSM6685 Datasheet (84.65 KB)

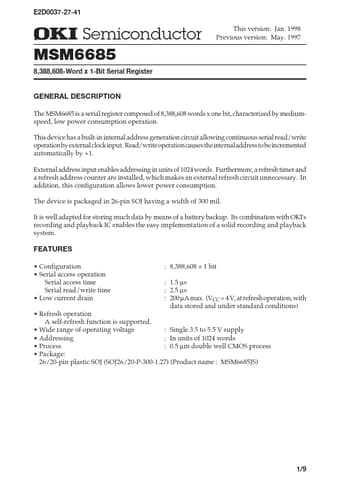

MSM6685 Datasheet Preview — Preview of MSM6685 PDF

Datasheet Details

Part number:

MSM6685

Manufacturer:

OKI electronic componets

File Size:

84.65 KB

Description:

8388608-word x 1-bit serial register.
