MSM5416262

Multiport DRAM

MSM5416262 Features

* block write, flash write functions on the RAM port and a split data transfer capability on the SAM port. The SAM port requires no refresh operation because it uses static CMOS flipflops. FEATURES

* Single power supply: 5 V ± 10%

* RAS only refresh

* Full TTL compatibility

MSM5416262 General Description

The MSM5416262 is a 4-Mbit CMOS multiport DRAM composed of a 262,144-word by 16-bit dynamic RAM, and a 512-word by 16-bit SAM. Its RAM and SAM operate independently and asynchronously. It supports three types of operations: random access to RAM port, high speed serial access to SAM port, and bidirec.

MSM5416262 Datasheet (398.02 KB)

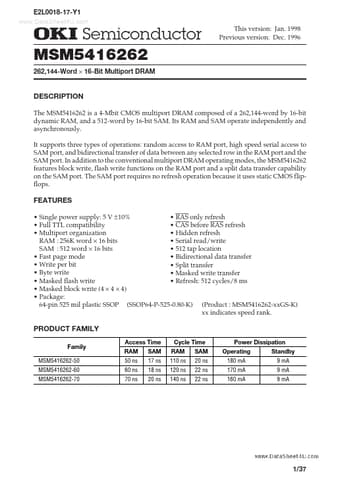

Preview of MSM5416262 PDF

Datasheet Details

Part number:

MSM5416262

Manufacturer:

OKI electronic

File Size:

398.02 KB

Description:

Multiport dram.
E2L0018-17-Y1 www.DataSheet4U.com ¡ Semiconductor ¡ Semiconductor MSM5416262 262,144-Word
* 16-Bit Multiport DRAM This version: Jan. 1998 MSM541.
