MSM5416272

Multiport DRAM

OKI electronic

MSM5416272 Features

* block write and flash write functions on the RAM port, and a split data transfer capability on the SAM port. The SAM port requires no refresh operation because it uses static CMOS flip-flops. FEATURES

* Single power supply: 5 V ± 10%

* RAS only refresh

* Full TTL compatibili

MSM5416272 General Description

The MSM5416272 is a 4-Mbit CMOS multiport DRAM composed of a 262,144-word by 16-bit dynamic RAM, and a 512-word by 16-bit SAM. Its RAM and SAM operate independently and asynchronously. It supports three types of operations: random access to RAM port, high speed serial access to SAM port, and bidirec.

MSM5416272 Datasheet (491.56 KB)

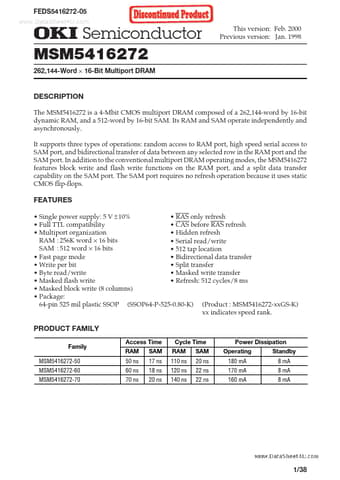

MSM5416272 Datasheet Preview — Preview of MSM5416272 PDF

Datasheet Details

Part number:

MSM5416272

Manufacturer:

OKI electronic

File Size:

491.56 KB

Description:

Multiport dram.
FEDS5416272-05 www.DataSheet4U.com ¡ Semiconductor MSM5416272 262,144-Word
* 16-Bit Multiport DRAM This version: Feb. 2000 Previous version: Jan.
