MSM82C55A-2GS CMOS PROGRAMMABLE PERIPHERAL INTERFACE

The MSM82C55A-2 is a programmable universal I/O interface device which operates as high speed and on low power consumption due to 3m silicon gate CMOS technology. It is the best fit as an I/O port in a system which employs the 8-bit parallel processing MSM80C85AH CPU. This device has 24-bit I/O pins.

MSM82C55A-2GS Features

* High speed and low power consumption due to 3m silicon gate CMOS technology

* 3 V to 6 V single power supply

* Full static operation

* Programmable 24-bit I/O ports

* Bidirectional bus operation (Port A)

* Bit set/reset function (Port C)

* TT

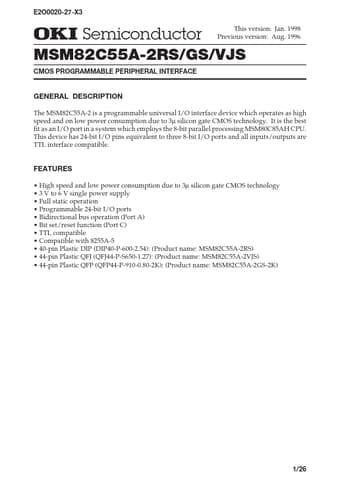

MSM82C55A_OKIelectronic.pdf

MSM82C55A-2GS Datasheet Preview — This datasheet PDF includes multiple part numbers: MSM82C55A-2GS, MSM82C55A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MSM82C55A-2GS, MSM82C55A

Manufacturer:

OKI electronic

File Size:

189.07 KB

Description:

Cmos programmable peripheral interface.

Note:

This datasheet PDF includes multiple part numbers: MSM82C55A-2GS, MSM82C55A.
Please refer to the document for exact specifications by model.
