MSM80C31F - CMOS 8-Bit Microcontroller

Datasheet Summary

Description

The OKI MSM80C31F/MSM80C51F microcontroller is a low-power, 8-bit device implemented in OKI's silicon-gate complementary metal-oxide semiconductor process technology.

Features

  • Low power consumption by 2 mm silicon gate CMOS process technology.
  • Fully static circuit.
  • Internal program memory : 4K bytes (MSM80C51F) www. DataSheet4U. com.
  • External program memory space : 64K bytes.
  • Internal data memory (RAM) : 128 bytes.
  • External data memory (RAM) space : 64K bytes.
  • I/O ports : 8-bit.
  • 4 ports.
  • Two 16-bit timer/counters.
  • Multifunctional serial port (UART).
  • Five interrupt sources (Pr.

📥 Download Datasheet

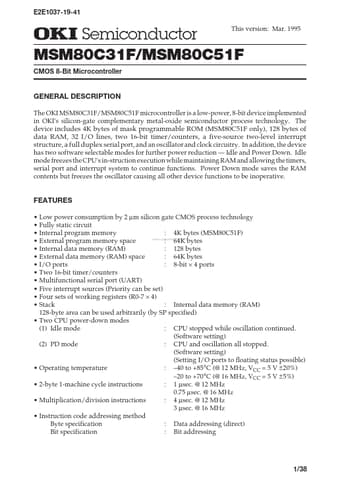

Datasheet preview – MSM80C31F
