MSM80C49 - CMOS 8-Bit Microcontroller

This page provides the datasheet information for the MSM80C49, a member of the MSM80C40 CMOS 8-Bit Microcontroller family.

Datasheet Summary

Description

The OKI MSM80C48/MSM80C49/MSM80C50 are 8-bit, low-power, high-performance microcontrollers implemented in silicon-gate complementary metal-oxide semiconductor technology.

Features

  • Lower power consumption enabled by CMOS silicon gate process.
  • Completely static operation.
  • Improved power-down feature.
  • Instruction cycle : 1.36 ms (11 MHz) VCC=4.5 to 6.0 V (MSM80C48/49) 2.5 ms (6 MHz) VCC=3.5 to 6.0 V (MSM80C50).
  • 111 instructions.
  • All instructions are usable even during execution of external ROM instructions.
  • Operation facility Addition, logical operations, and decimal adjust.
  • Program memory (ROM) : 1K w.

📥 Download Datasheet

Datasheet preview – MSM80C49

Datasheet Details

Part number MSM80C49
Manufacturer OKI electronic componets
File Size 149.39 KB
Description CMOS 8-Bit Microcontroller
Datasheet download datasheet MSM80C49 Datasheet
Additional preview pages of the MSM80C49 datasheet.

📁 Similar Datasheet

Other Datasheets by OKI electronic componets

Full PDF Text Transcription

Click to expand full text

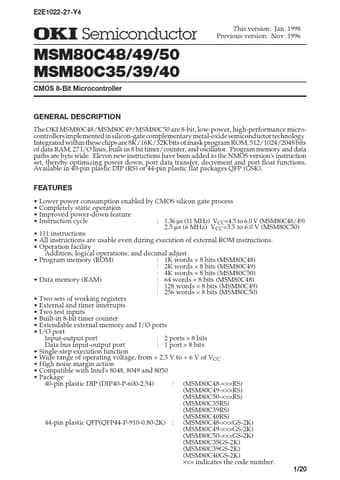

E2E1022-27-Y4 ¡ Semiconductor MSM80C48/49/50 MSM80C35/39/40 ¡ Semiconductor CMOS 8-Bit Microcontroller This version: Jan. 1998 MSM80C48/49/50, MSM80C35/39/40 Previous version: Nov. 1996 GENERAL DESCRIPTION The OKI MSM80C48/MSM80C49/MSM80C50 are 8-bit, low-power, high-performance microcontrollers implemented in silicon-gate complementary metal-oxide semiconductor technology. Integrated within these chips are 8K/16K/32K bits of mask program ROM, 512/1024/2048 bits of data RAM, 27 I/O lines, built-in 8 bit timer/counter, and oscillator. Program memory and data paths are byte wide. Eleven new instructions have been added to the NMOS version's instruction set, thereby optimizing power down, port data transfer, decrement and port float functions.
