MSM80C88A-10JS - 8-Bit CMOS MICROPROCESSOR

This page provides the datasheet information for the MSM80C88A-10JS, a member of the MSM80C88A 8-Bit CMOS MICROPROCESSOR family.

Datasheet Summary

Description

The MSM80C88A-10 is internal 16-bit CPUs with 8-bit interface implemented in Silicon Gate CMOS technology.

It is designed with the same processing speed as the NMOS8088-1, but with considerably less power consumption.

The processor has attributes of both 8 and 16-bit microprocessor.

Features

  • 8-Bit Data Bus interface.
  • 16-Bit Internal Architecture.
  • 1 Mbyte Direct Addressable Memory Space.
  • Software Compatible with MSM80C86A-10.
  • Internal 14-Word by 16-bit Register Set.
  • 24-Operand Addressing Modes.
  • Bit, Byte, Word and String Operations.
  • 8 and 16-bit Signed and Unsigned Arithmetic Operation.
  • From DC to 10 MHz Clock Rate (Note).
  • Low Power Dissipation.

📥 Download Datasheet

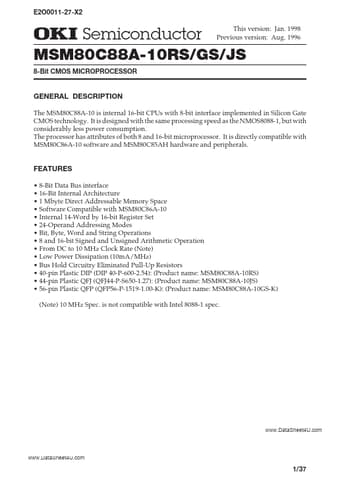

Datasheet preview – MSM80C88A-10JS

Datasheet Details

Part number MSM80C88A-10JS
Manufacturer OKI
File Size 317.29 KB
Description 8-Bit CMOS MICROPROCESSOR
Datasheet download datasheet MSM80C88A-10JS Datasheet
Additional preview pages of the MSM80C88A-10JS datasheet.

📁 Similar Datasheet

  • MSM80C88A - 8-Bit CMOS MICROPROCESSOR (OKI electronic componets)
  • MSM80C154S - CMOS 8-bit Microcontroller (OKI electronic componets)
  • MSM80C154S - CMOS 8-bit Microcontroller (ETC)
  • MSM80C31F - CMOS 8-Bit Microcontroller (OKI electronic)
  • MSM80C35 - CMOS 8-Bit Microcontroller (OKI electronic componets)
  • MSM80C39 - CMOS 8-Bit Microcontroller (OKI electronic componets)
  • MSM80C40 - CMOS 8-Bit Microcontroller (OKI electronic componets)
  • MSM80C48 - CMOS 8-Bit Microcontroller (OKI electronic componets)
  • MSM80C49 - CMOS 8-Bit Microcontroller (OKI electronic componets)
  • MSM80C50 - CMOS 8-Bit Microcontroller (OKI electronic componets)
Other Datasheets by OKI

Full PDF Text Transcription

Click to expand full text
( DataSheet : www.DataSheet4U.com ) E2O0011-27-X2 ¡ Semiconductor¡ Semiconductor MSTMh8is0vCe8r8siAo-n1:0JRaSn./G19S9/8JS Previous version: Aug. 1996 MSM80C88A-10RS/GS/JS 8-Bit CMOS MICROPROCESSOR GENERAL DESCRIPTION The MSM80C88A-10 is internal 16-bit CPUs with 8-bit interface implemented in Silicon Gate CMOS technology. It is designed with the same processing speed as the NMOS8088-1, but with considerably less power consumption. The processor has attributes of both 8 and 16-bit microprocessor. It is directly compatible with MSM80C86A-10 software and MSM80C85AH hardware and peripherals.
