MSM80C85AHJS - 8-Bit CMOS MICROPROCESSOR

This page provides the datasheet information for the MSM80C85AHJS, a member of the MSM80C85 8-Bit CMOS MICROPROCESSOR family.

Datasheet Summary

Description

The MSM80C85AH is a complete 8-bit parallel; central processor implemented in silicon gate C-MOS technology and compatible with MSM80C85A.

Features

  • Power down mode (HALT-HOLD).
  • Low Power Dissipation: 50mW(Typ).
  • Single + 3 to + 6 V Power Supply.
  • 40 to + 85°C, Operating Temperature.
  • Compatible with MSM80C85A.
  • 0.8 ms instruction Cycle (VCC = 5V).
  • On-Chip Clock Gener.

📥 Download Datasheet

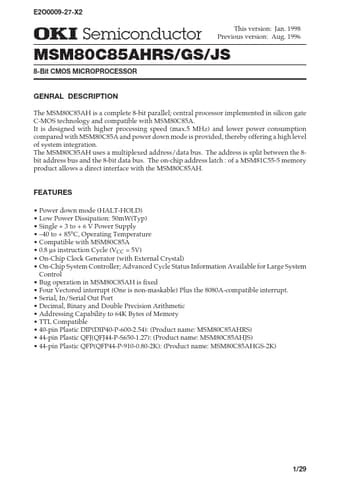

Datasheet preview – MSM80C85AHJS
