MSM80C85AHRS

8-Bit CMOS MICROPROCESSOR

OKI

MSM80C85AHRS Features

* Power down mode (HALT-HOLD)

* Low Power Dissipation: 50mW(Typ)

* Single + 3 to + 6 V Power Supply

* 40 to + 85°C, Operating Temperature

* Compatible with MSM80C85A

* 0.8 ms instruction Cycle (VCC = 5V)

* On-Chip Clock Gener

MSM80C85AHRS General Description

The MSM80C85AH is a complete 8-bit parallel; central processor implemented in silicon gate C-MOS technology and compatible with MSM80C85A. It is designed with higher processing speed (max.5 MHz) and lower power consumption compared with MSM80C85A and power down mode is provided, thereby offering a h.

MSM80C85AHRS Datasheet (210.28 KB)

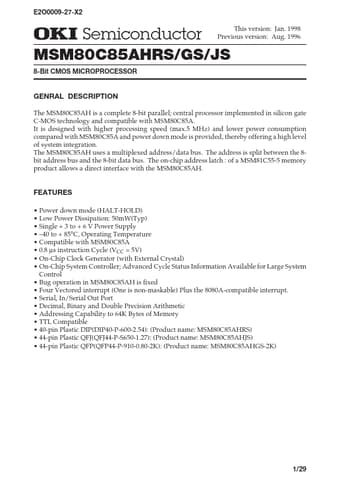

MSM80C85AHRS Datasheet Preview — Preview of MSM80C85AHRS PDF

Datasheet Details

Part number:

MSM80C85AHRS

Manufacturer:

OKI

File Size:

210.28 KB

Description:

8-bit cmos microprocessor.
E2O0009-27-X2 ¡ Semiconductor¡ Semiconductor MTShMis8v0eCrs8i5oAn:HJRaSn./G19S9/8JS Previous version: Aug. 1996 MSM80C85AHRS/GS/JS 8-Bit CMOS MICR.
