1PMT24ATx (1PMTxxAT1/T3) Zener Transient Voltage Suppressor POWERMITE Package

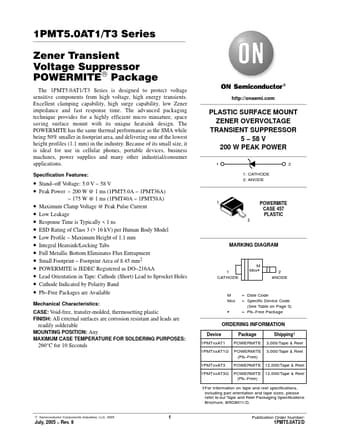

1PMT5.0AT1/T3 Series Zener Transient Voltage Suppressor POWERMITE® Package The 1PMT5.0AT1/T3 Series is designed to protect voltage sensitive components from high voltage, high energy transients. Excellent clamping capability, high surge capability, low Zener impedance and fast response time. The advanced packaging technique provides for a highly efficient micro miniature, space saving surface mount with its unique heatsink design. The POWERMITE has the same thermal performance as the SMA while b.

1PMT24ATx Features

* http://onsemi.com PLASTIC SURFACE MOUNT ZENER OVERVOLTAGE TRANSIENT SUPPRESSOR 5

* 58 V 200 W PEAK POWER 1 1: CATHODE 2: ANODE 2

* Stand

* off Voltage: 5.0 V

* 58 V

* Peak Power

* 200 W @ 1 ms (1PMT5.0A

* 1PMT36A)

1PMT24ATx Datasheet (65.04 KB)
