1PMT5.0AT1 Datasheet - ON Semiconductor

1PMT5.0AT1 Zener Transient Voltage Suppressor POWERMITE Package

1PMT5.0AT1/T3 Series Zener Transient Voltage Suppressor POWERMITE® Package The 1PMT5.0AT1/T3 Series is designed to protect voltage sensitive components from high voltage, high energy transients. Excellent clamping capability, high surge capability, low zener impedance and fast response time. The advanced packaging technique provides for a highly efficient micro miniature, space saving surface mount with its unique heat sink design. The POWERMITE has the same thermal performance as the SMA while .

1PMT5.0AT1 Features

* http://onsemi.com PLASTIC SURFACE MOUNT ZENER OVERVOLTAGE TRANSIENT SUPPRESSOR 5

* 58 V 200 W PEAK POWER 1 1: CATHODE 2: ANODE 2

* Stand

* off Voltage: 5

* 58 V

* Peak Power

* 200 W @ 1 ms (1PMT5.0A

* 1PMT36A)

1PMT5.0AT1 Datasheet (57.77 KB)

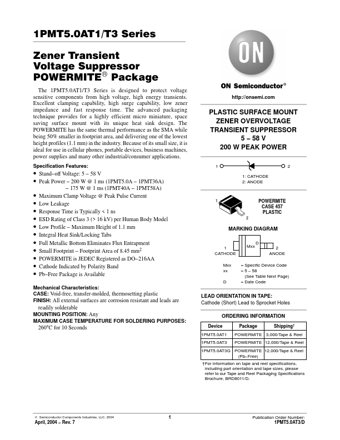

1PMT5.0AT1 Datasheet Preview — Preview of 1PMT5.0AT1 PDF

Datasheet Details

Part number:

1PMT5.0AT1

Manufacturer:

ON Semiconductor ↗

File Size:

57.77 KB

Description:

Zener transient voltage suppressor powermite package.
