1PMT5.0AT3G Zener Transient Voltage Suppressor POWERMITE Package

1PMT5.0AT1/T3 Series Zener Transient Voltage Suppressor POWERMITE® Package The 1PMT5.0AT1/T3 Series is designed to protect voltage sensitive components from high voltage, high energy transients. Excellent clamping capability, high surge capability, low zener impedance and fast response time. The advanced packaging technique provides for a highly efficient micro miniature, space saving surface mount with its unique heat sink design. The POWERMITE has the same thermal performance as the SMA while .

1PMT5.0AT3G Features

* http://onsemi.com PLASTIC SURFACE MOUNT ZENER OVERVOLTAGE TRANSIENT SUPPRESSOR 5

* 58 V 200 W PEAK POWER 1 1: CATHODE 2: ANODE 2

* Stand

* off Voltage: 5

* 58 V

* Peak Power

* 200 W @ 1 ms (1PMT5.0A

* 1PMT36A)

1PMT5.0AT3G_ONSemiconductor.pdf

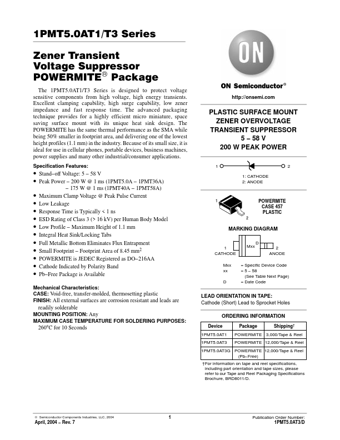

1PMT5.0AT3G Datasheet Preview — Preview of 1PMT5.0AT3G PDF

Datasheet Details

Part number:

1PMT5.0AT3G

Manufacturer:

ON Semiconductor ↗

File Size:

57.77 KB

Description:

Zener transient voltage suppressor powermite package.
