1SMA10AT3G 400 Watt Peak Power Zener Transient Voltage Suppressors

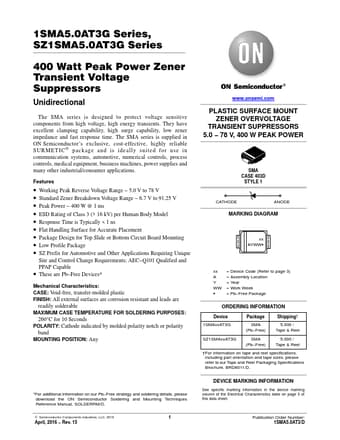

1SMA5.0AT3G Series, SZ1SMA5.0AT3G Series 400 Watt Peak Power Zener Transient Voltage Suppressors Unidirectional The SMA series is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping capability, high surge capability, low zener impedance and fast response time. The SMA series is supplied in ON Semiconductor’s exclusive, cost-effective, highly reliable SURMETIC® package and is ideally suited for use in communication systems, aut.

1SMA10AT3G Features

* Working Peak Reverse Voltage Range

* 5.0 V to 78 V

* Standard Zener Breakdown Voltage Range

* 6.7 V to 91.25 V

* Peak Power

* 400 W @ 1 ms

* ESD Rating of Class 3 (> 16 kV) per Human Body Model

* Response Time is Typically < 1 ns

1SMA10AT3G Datasheet (62.34 KB)
