1SMA10CAT3G - 400 Watt Peak Power Zener Transient Voltage Suppressors

Product Overview

ON Semiconductor

📥 Download Datasheet

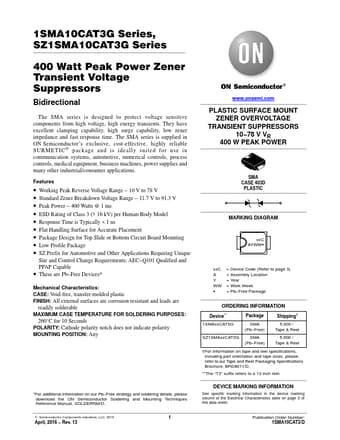

1SMA10CAT3G 400 Watt Peak Power Zener Transient Voltage Suppressors by ON Semiconductor - Datasheet Preview — Datasheet preview – 1SMA10CAT3G

Datasheet Details

Part number	1SMA10CAT3G
Manufacturer	ON Semiconductor
File Size	59.41 KB
Description	400 Watt Peak Power Zener Transient Voltage Suppressors
Datasheet	1SMA10CAT3G Datasheet
Additional preview pages of the 1SMA10CAT3G datasheet.

Product details

Features

Working Peak Reverse Voltage Range.
10 V to 78 V.
Standard Zener Breakdown Voltage Range.
11.7 V to 91.3 V.
Peak Power.
400 Watts @ 1 ms.
ESD Rating of Class 3 (> 16 kV) per Human Body Model.
Response Time is Typically < 1 ns.
Flat Handling Surface for Accurate Placement.
Package Design for Top Slide or Bott.
