2SB1302 Datasheet - ON Semiconductor

2SB1302, Bipolar Transistor

DATA SHEET www.onsemi.com Bipolar Transistor *20 V, *5 A, Low VCE(sat), PNP Single PCP 2SB1302 .

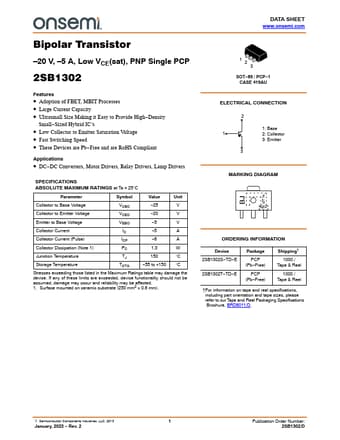

datasheet Preview Page 1 from Datasheet4u.com

2SB1302-ONSemiconductor.pdf

2SB1302 Datasheet Preview — Preview of 2SB1302 PDF

Datasheet Details

Part number:

2SB1302

Manufacturer:

ON Semiconductor ↗

File Size:

147.76 KB

Description:

Bipolar Transistor

Features

* Adoption of FBET, MBIT Processes
* Large Current Capacity
* Ultrasmall Size Making it Easy to Provide High
* Density Small
* Sized Hybrid IC’s
* Low Collector to Emitter Saturation Voltage
* Fast Switching Speed
* These Devices are Pb

Applications

* DC
* DC Converters, Motor Drivers, Relay Drivers, Lamp Drivers SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS at Ta = 25°C Parameter Symbol Value Unit Collector to Base Voltage VCBO
* 25 V Collector to Emitter Voltage VCEO
* 20 V Emitter to Base Voltage VEBO
