2SD1802, Bipolar Transistor

2SB1202/2SD1802 Bipolar Transistor ( *)50 V, ( *)3 A, Low VCE(sat) (PNP)NPN Single TP/TP *FA .

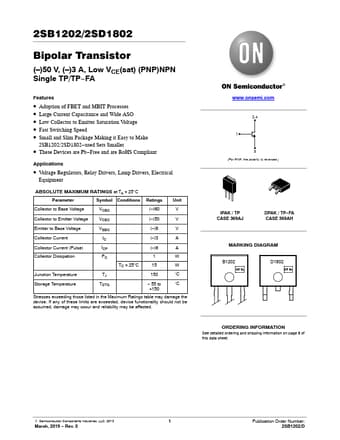

datasheet Preview Page 1 from Datasheet4u.com

2SD1802-ONSemiconductor.pdf

2SD1802 Datasheet Preview — Preview of 2SD1802 PDF

Datasheet Details

Part number:

2SD1802

Manufacturer:

ON Semiconductor ↗

File Size:

290.25 KB

Description:

Bipolar Transistor

Features

* Adoption of FBET and MBIT Processes
* Large Current Capacitance and Wide ASO
* Low Collector to Emitter Saturation Voltage
* Fast Switching Speed
* Small and Slim Package Making it Easy to Make 2SB1202/2SD1802
* used Sets Smaller
* These Device

Applications

* Voltage Regulators, Relay Drivers, Lamp Drivers, Electrical Equipment ABSOLUTE MAXIMUM RATINGS at TA = 25°C Parameter Symbol Conditions Ratings Unit Collector to Base Voltage VCBO (
* )60 V Collector to Emitter Voltage VCEO (
* )50 V Emitter to Base Voltage VEBO (
