2SK3826 - N-Channel Silicon MOSFET

Product Overview

ON Semiconductor

📥 Download Datasheet

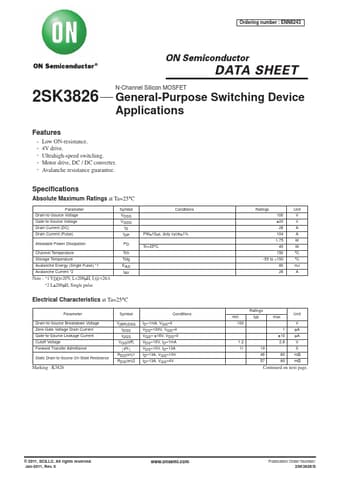

2SK3826 N-Channel Silicon MOSFET by ON Semiconductor - Datasheet Preview — Datasheet preview – 2SK3826

Datasheet Details

Part number	2SK3826
Manufacturer	ON Semiconductor
File Size	92.66 KB
Description	N-Channel Silicon MOSFET
Datasheet	2SK3826 Datasheet
Additional preview pages of the 2SK3826 datasheet.

Product details

Features

Low ON-resistance.
4V drive.
Ultrahigh-speed switching.
Motor drive, DC / DC converter.
Avalanche resistance guarantee. Specifications Absolute Maximum Ratings at Ta=25°C Parameter Drain-to-Source Voltage Gate-to-Source Voltage Drain Current (DC) Drain Current (Pulse) Allowable Power Dissipation Channel Temperature Storage Temperature Avalanche Energy (Single Pulse).
1 Avalanche Current.
2 Note :.
1 VDD=20V, L=200µH, IAV=26A.
2.
