2SK3800 MOSFET

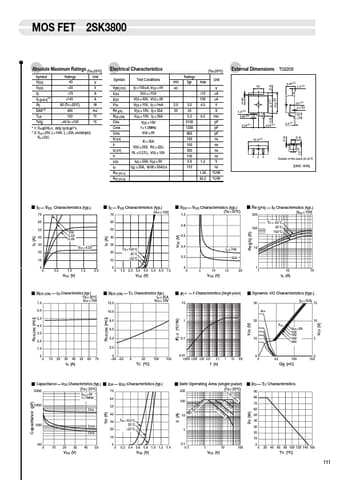

MOS FET 2SK3800 Absolute Maximum Ratings (Ta=25ºC) Symbol Ratings Unit VDSS 40 V VGSS ±20 V ID ±70 A ID (pulse) 1 ±140 A PD EAS 2 80 (Tc=25ºC) W 400 mJ Tch 150 ºC Tstg 40 to +150 ºC 1: PW 100µs, duty cycle 1% 2: VDD =20V, L =1mH, IL =20A, unclamped, RG = 50Ω Electrical Characteristics Symbol Test Conditions V(BR) DSS IGSS IDSS VTH Re (yfs) RDS (ON) Ciss Coss Crss td (on) tr td (off) tf VSD trr Rth (ch-c) Rth (ch-a) ID = 100µA, VGS = 0.
