2SK3811-ZP Datasheet, Transistor, Inchange Semiconductor

2SK3811-ZP Features

  • Transistor
  • Drain Current : ID= 110A@ TC=25℃
  • Drain Source Voltage : VDSS= 40V(Min)
  • Static Drain-Source On-Resistance : RDS(on) = 1.8mΩ(Max) @ VGS= 10V
  • 100% avala

PDF File Details

Part number:

2SK3811-ZP

Manufacturer:

Inchange Semiconductor

File Size:

357.01kb

Download:

📄 Datasheet

Description:

N-channel mosfet transistor.

  • motor drive, DC-DC converter, power switch and solenoid drive. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE

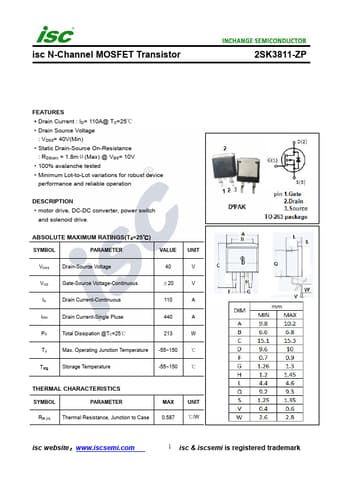

  • Datasheet Preview: 2SK3811-ZP 📥 Download PDF (357.01kb)
    Page 2 of 2SK3811-ZP

    2SK3811-ZP Application

    • Applications of our products. ISC products are intended for usage in general electronic equipment. The products are not designed for use in equipmen
