2SK3812 Datasheet, Mosfet, NEC

2SK3812 Features

  • Mosfet
  • Super low on-state resistance RDS(on)1 = 2.8 mΩ MAX. (VGS = 10 V, ID = 55 A) RDS(on)2 = 3.7 mΩ MAX. (VGS = 4.5 V, ID = 55 A)
  • High current rating: ID(DC) = ±110 A AB

PDF File Details

Part number:

2SK3812

Manufacturer:

NEC

File Size:

167.28kb

Download:

📄 Datasheet

Description:

Switching n-channel power mosfet. The 2SK3812 is N-channel MOS Field Effect Transistor designed for high current switching applications. ORDERING INFORMATION PART NUM

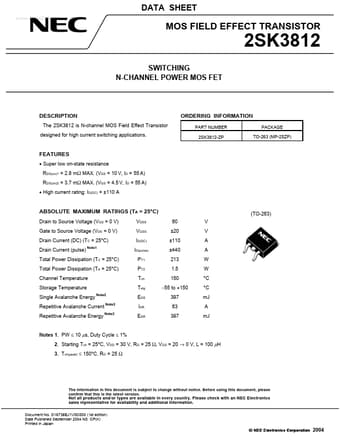

Datasheet Preview: 2SK3812 📥 Download PDF (167.28kb)
Page 2 of 2SK3812 Page 3 of 2SK3812

2SK3812 Application

  • Applications ORDERING INFORMATION PART NUMBER 2SK3812-ZP PACKAGE TO-263 (MP-25ZP) FEATURES
  • Super low on-state resistance RDS(on)1 = 2.8
