2SK3054, N-Channel MOSFET

DATA SHEET MOS FIELD EFFECT TRANSISTOR 2SK3054 N-CHANNEL MOS FIELD EFFECT TRANSISTOR FOR SWITCHING .
The 2SK3054 is a switching device which can be driven directly by a 2.

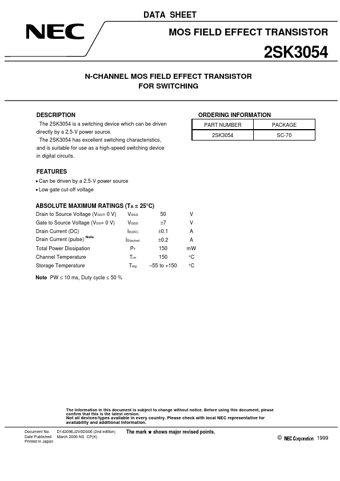

datasheet Preview Page 1 from Datasheet4u.com

2SK3054_NEC.pdf

2SK3054 Datasheet Preview — Preview of 2SK3054 PDF

Datasheet Details

Part number:

2SK3054

Manufacturer:

NEC

File Size:

51.65 KB

Description:

N-Channel MOSFET

Features

* Can be driven by a 2.5-V power source
* Low gate cut-off voltage ABSOLUTE MAXIMUM RATINGS (TA = 25°C) Drain to Source Voltage (VGS= 0 V) Gate to Source Voltage (VDS= 0 V) Drain Current (DC) Drain Current (pulse) Note VDSS VGSS ID(DC) ID(pulse) PT Tch Tstg 50 ±7 ±0.1 ±0.2 150 150

Applications

* of a device depend on its quality grade, as indicated below. Customers must check the quality grade of each device before using it in a particular application. Standard: Computers, office equipment, communications equipment, test and measurement equipment, audio and visual equipment, home electronic
