2SK3053 - N-Channel MOSFET

2SK3053 Description

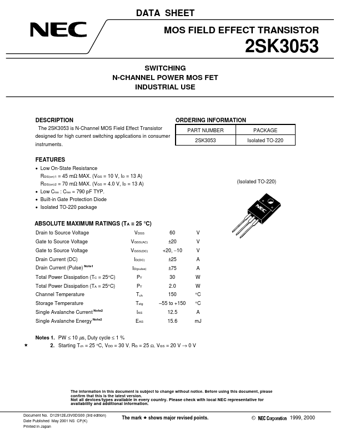

DATA SHEET MOS FIELD EFFECT TRANSISTOR 2SK3053 SWITCHING N-CHANNEL POWER MOS FET INDUSTRIAL USE .
The 2SK3053 is N-Channel MOS Field Effect Transistor designed for high current switching applications in consumer instruments.

2SK3053 Features

* Low On-State Resistance RDS(on)1 = 45 mΩ MAX. (VGS = 10 V, ID = 13 A) RDS(on)2 = 70 mΩ MAX. (VGS = 4.0 V, ID = 13 A)
* Low Ciss : Ciss = 790 pF TYP.
* Built-in Gate Protection Diode
* Isolated TO-220 package (Isolated TO-220) ABSOLUTE MAXIMUM RATINGS (TA = 25 °C) D
