2SK3056 - N-Channel MOSFET

2SK3056 Description

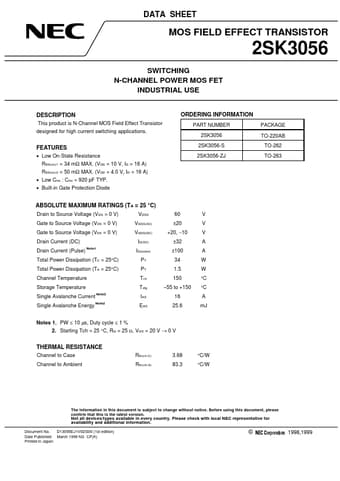

DATA SHEET MOS FIELD EFFECT TRANSISTOR 2SK3056 SWITCHING N-CHANNEL POWER MOS FET INDUSTRIAL USE ORDERING INFORMATION PART NUMBER 2SK3056 2SK3056-S 2.
This product is N-Channel MOS Field Effect Transistor designed for high current switching applications. Low On-State Resistance RD.

2SK3056 Features

* Low On-State Resistance RDS(on)1 = 34 mΩ MAX. (VGS = 10 V, ID = 16 A) RDS(on)2 = 50 mΩ MAX. (VGS = 4.0 V, ID = 16 A)
* Low Ciss : Ciss = 920 pF TYP.
* Built-in Gate Protection Diode ABSOLUTE MAXIMUM RATINGS (TA = 25 °C) Drain to Source Voltage (VGS = 0 V) Gate to Source Vo
