2SK3050 - Small switching Transistors

Product Overview

Rohm

Part number	2SK3050
Manufacturer	ROHM
File Size	124.26 KB
Description	Small switching Transistors
Datasheet	2SK3050 Datasheet

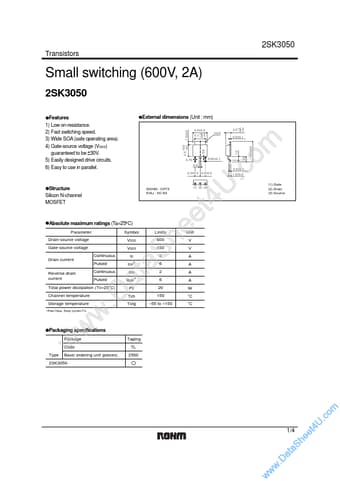

Additional preview pages of the 2SK3050 datasheet.

1) Low on-resistance. 2) Fast switching speed. 3) Wide SOA (safe operating area). 4) Gate-source voltage (VGSS) guaranteed to be ±30V. 5) Easily designed drive circuits. 6) Easy to use in parallel. zExternal dimensions (Unit : mm) 1.5±0.3 6.5±0.2 0.2 5.1 +.
0.1 C0.5 0.2 2.3 +.
0.1 0.5±0.1 0.75 0.9 0.65±0.1 0.5±0.1 2.3±0.2 2.3±0.2 1.0±0.2 zStructure Silicon N-channel MOSFET zAbsolute maximum ratings (Ta=25°C) Parameter Drain-source voltage Gate-source voltage Drain current Re.
