2SK3019 - 2.5V Drive Nch MOS FET

Product Overview

Rohm

Part number	2SK3019
Manufacturer	ROHM
File Size	66.83 KB
Description	2.5V Drive Nch MOS FET
Datasheet	2SK3019 Datasheet

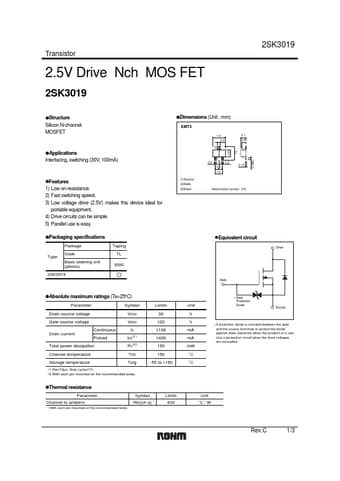

Additional preview pages of the 2SK3019 datasheet.

1) Low on-resistance. 2) Fast switching speed. 3) Low voltage drive (2.5V) makes this device ideal for portable equipment. 4) Drive circuits can be simple. 5) Parallel use is easy. zPackaging specifications Package Type Code Basic ordering unit (pieces) 2SK3019 Taping TL 3000 0.8 1.6 0.1Min. zDimensions (Unit : mm) EMT3 1.6 0.3 (3) 0.7 0.55 (1)Source (2)Gate (3)Drain (2) (1) 0.2 0.2 0.5 0.5 1.0 0.15 Abbreviated symbol : KN zEquivalent circuit Gate Drain zAbsolute maximum ratings.
