2SK3018 - 2.5V Drive Nch MOS FET

Product Overview

Rohm

Part number	2SK3018
Manufacturer	ROHM
File Size	60.23 KB
Description	2.5V Drive Nch MOS FET
Datasheet	2SK3018 Datasheet

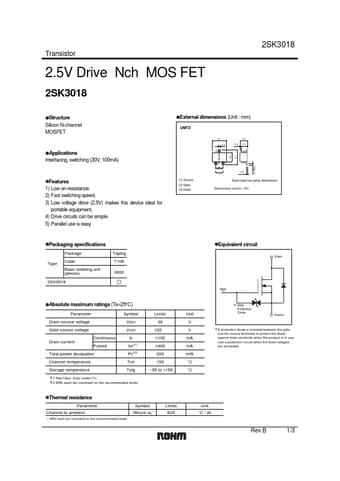

Additional preview pages of the 2SK3018 datasheet.

1) Low on-resistance. 2) Fast switching speed. 3) Low voltage drive (2.5V) makes this device ideal for portable equipment. 4) Drive circuits can be simple. 5) Parallel use is easy. zExternal dimensions (Unit : mm) UMT3 2.0 0.3 (3) 0.9 0.2 0.7 1.25 2.1 0.1Min. (1) Source (2) Gate (3) Drain (2) (1) 0.65 0.65 1.3 0.15 Each lead has same dimensions Abbreviated symbol : KN zPackaging specifications Package Type Code Basic ordering unit (pieces) 2SK3018 Taping T106 3000 zEquivalent cir.
